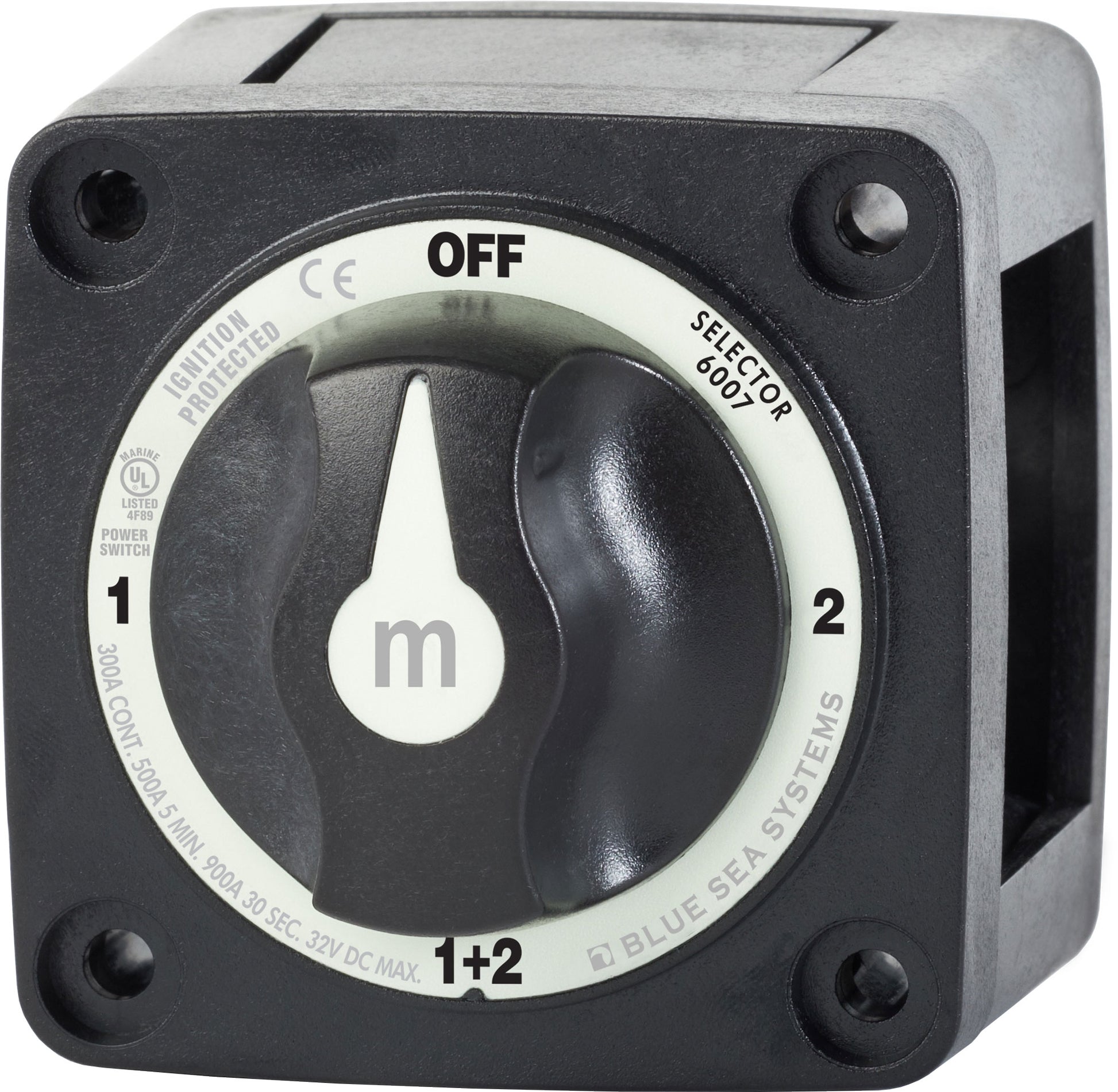

Blue Sea M-Series Battery Switch On/Off/On/Both with Knob Black

Blue Sea M-Series Battery Switch On/Off/On/Both with Knob Black

Blue Sea Systems m-Series Mini Selector Battery Switch - Black

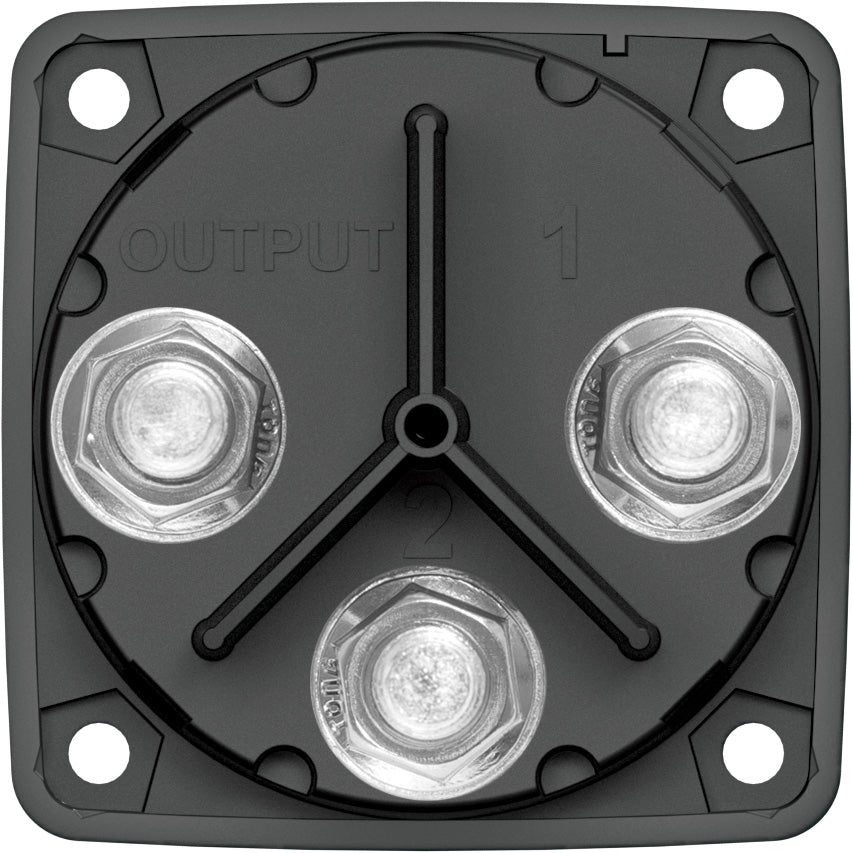

• Tin-plated copper studs for maximum conductivity and corrosion resistance


• Studs accept 3/8" (M10) ring terminals


• 7/8" (22mm) stud length accepts multiple cable terminals


• Blue Sea Systems one-piece terminal stud design never loosens over time


• Isolating cover with snap-on sections protects rear contacts


• Case design allows surface, rear, or front panel mounting options


• Waterproof — rated IP66 from water projected in powerful jets


• One-piece stainless flange nuts ensure safe and secure connections


• Breakout tabs allow wire access in any direction


• Ignition protected—safe for installation aboard gasoline powered boats


• Make before break contact design allows switching between battery banks without power interruption

Switches isolated battery banks to all loads or combines battery banks to all loads

Switch Type
Selector 4 Position

Color
Black

Switch Positions
4

Battery Combine
Yes

Alternator Field Disconnect
No

Maximum Voltage
32vDC

Stud Size
3/8"

Terminal Stud Torque
120 in-lb (13.56 Nm)

Continuous Rating
300A

Intermittent Rating
500A (5 min)

Cranking Rating 30 sec
900A

Battery Inputs
2

Cable Clearance For 4/0 AWG Cables
1.12in (28.45 mm)

Cable Size to Meet Ratings
4/0 AWG (120mm )

Mounting Holes
Accept #10 Screw

Stud Material
Tinned Copper

Stud Torque
120 in-lb (13.56 Nm)

Terminal Stud Size
3/8" - 16 (M10)
