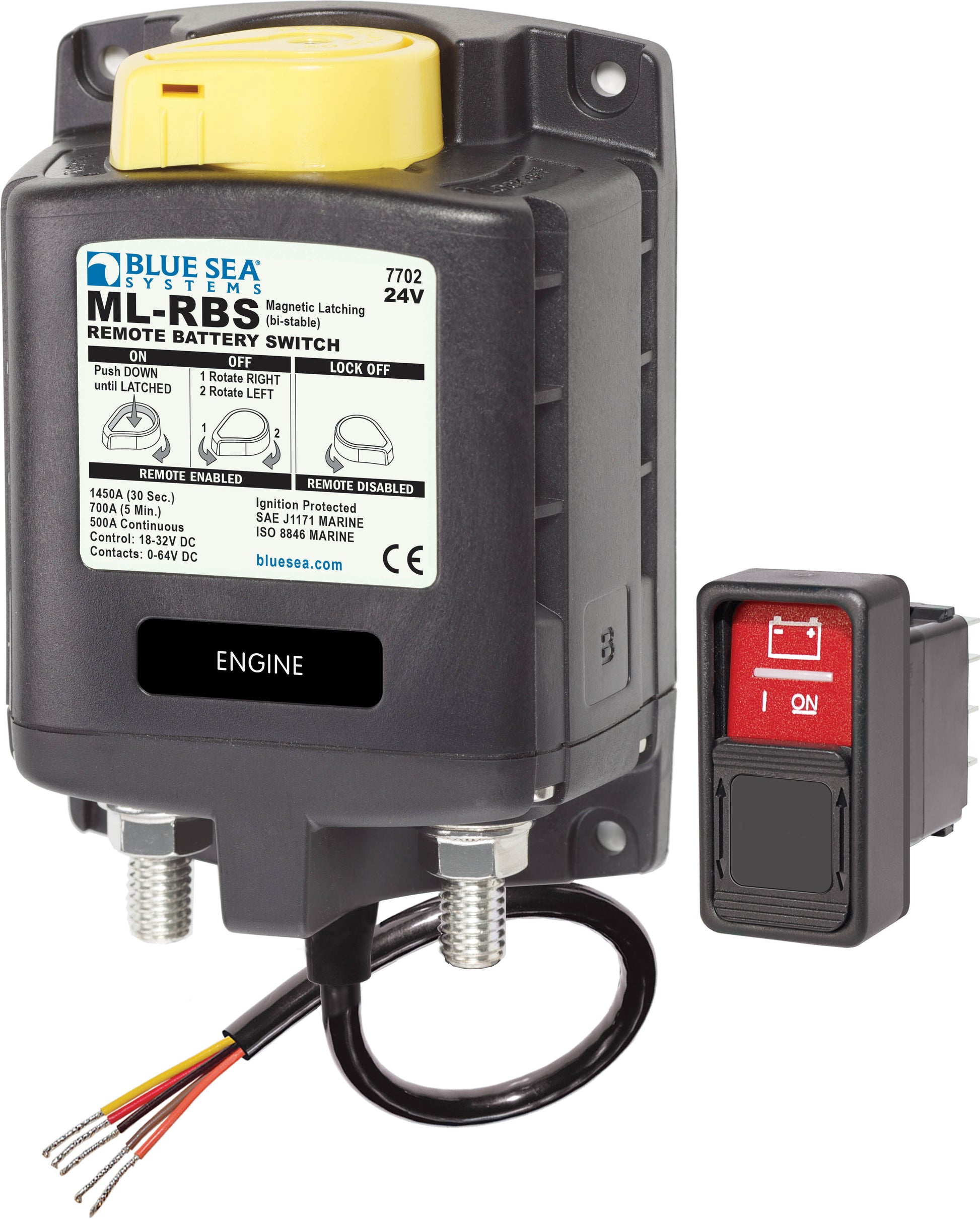

Blue Sea ML-RBS Remote Battery Switch with Manual Control - 24V DC 500A

• Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing


• LED output to remotely indicate switch state - requires optional LED


• 3? 8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance


• 7? 8" (22 mm) stud length accepts multiple cable terminals


• Label recesses for circuit identification


• Silver alloy contacts provide high reliability for switching live loads

500 Amp magnetic latching switch provides high amperage switching under load, manually or from remote locations

Control Circuit Voltage
18-32V DC

Control Circuit Connection
Tinned Wire

Nominal Voltage
24V DC

Manual Control
Yes

Coil Function
Bi-Stable

Amperage Operating Current
0mA

Amperage Operating Current when changing state
<4A (40 ms)

Continuous Rating
500A

Intermittent Rating
700A - 5 minutes

Cranking Rating 30 sec
1450A DC

Minimum Operating Temperature
-10° C

Maximum Operating Temperature
60° C

Cable Size to Meet Ratings
2x (4/0)

Live Current Switching
300A @ 12V DC, 150A @ 24V DC

Master Control Switch Capability
No

Mechanical Endurance
100,000 Cycles

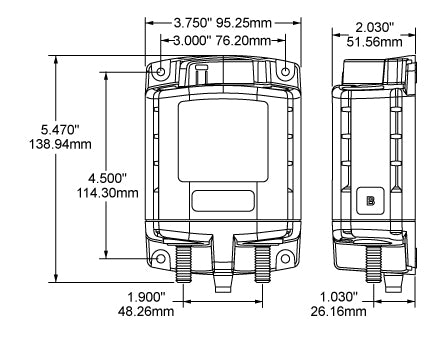

Terminal Ring Diameter Clearance
1.18in (29.97 mm)

Terminal Stud Length
0.875in (22.23 mm)

Terminal Stud Size
3/8" - 16 (M10)

Weight
2.05lb (0.93 kg)
