Icom M510 VHF

Icom M510 VHF Radio

Model: M510 11 USA

• MMSI reset dongle


• Hand microphone with AquaQuake™

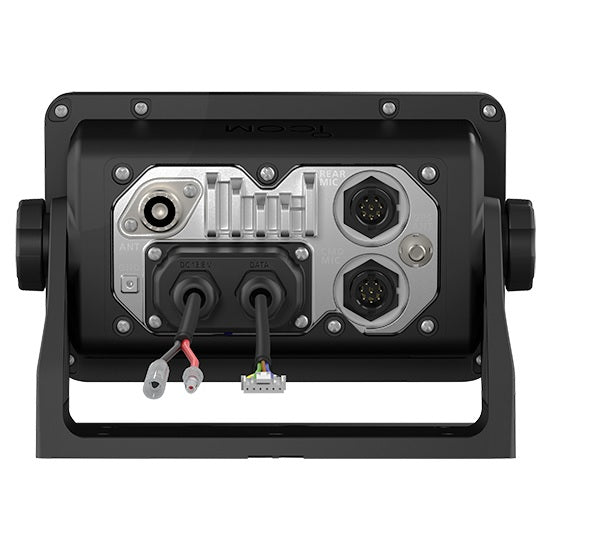

• Front and back microphone connection ports


• Optional voice scrambler


• External speaker connection


• Supports 4-digit channels


• Option to connect external GPS

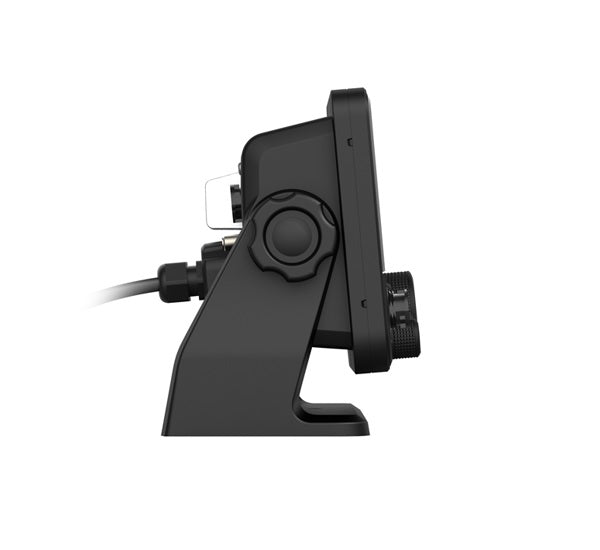

Icom’s new Class D DSC fixed mount VHF marine transceiver, the M510 is a tech-laden powerhouse. The M510 is nearly half the depth of the M506, allowing installation in more confined spaces. The large color display has a simple user interface allowing casual and serious boaters alike with plenty of options to communicate. Additionally, command and control using iOS® and Android™ smart devices with class leading features such as wireless calling.

The M510 includes a full color 3.5" TFT LCD screen with a near 180-degree viewing angles. The standard marine user interface is enhanced with animated functions and night mode for optimal viewing in the dark.

The RS-M500 app allows you to connect three iOS® or Android™ smart devices to function as a wireless command speaker/microphone. Use the push-to-talk features, scroll/scan channels, as well as use the M510’s intercom function from the comfort of the captain’s seat. Additionally, one COMMANDMIC™ can connect while 3 other smart devices are linked.

Connect to NMEA 2000 with the optional CT-M500 wireless interface box. If the NMEA connection is on a different part of the boat, the CT-M500 can wirelessly connect with the M510, providing flexibility on placement. Additionally, with the optional SP-37 horn speaker, the CT-M500 can access the two-way hailer/PA functions.

Specifications

General

Usable channels
USA, INT, CAN, WX channels

Type of emission
16K0G3E (FM), 16K0G2B (DSC), 16K0GXW (AIS)*

Power supply requirement
13.8V DC (11.7—15.9V DC)

Current drain TX (25W output)
5.0A

Current drain RX (Max. Audio)
3.3A

Operating temperature range
—20°C to +60°C; —4°F to +140°F

Antenna impedance
50 Ohm

Transmitter

Output power (at 13.8V DC)
25W, 1W

Max. frequency deviation
+/- 5.0 kHz

Frequency tolerance
+/- 0.5 kHz

Spurious emissions
Less than -70 dBc (at 25W)

Residual modulation
More than 40 dB

More than 40 dB
More than 70 dB

Receiver

Sensitivity (at 12dB SINAD) DSC (1% BER)
0.32 µV typical 0.89 µV emf typical

Adjacent channel selectivity DSC (1% BER)
More than 75 dB More than 73 dBµ emf

Spurious response DSC (1% BER)
More than 75 dB More than 73 dBµ emf

Intermodulation DSC (1% BER)
More than 75 dB More than 68 dBµ emf

Hum and noise
More than 40 dB

Audio output power at 10% distortion
More than 15W with a 4Ω external speaker

Wireless LAN

Wireless LAN standard
IEEE 802.11 b/g/n

Authentication and Encryption
WEP (64/128 bit), WPA-PSK (TKIP), WPA2-PSK (AES)

Channels
1 to 13 (2.4 GHz band)**

Output power
Less than 10 mW/MHz

What's in the Box:

• M510


• Speaker microphone, HM-205RB


• Microphone hanger


• DC Power Cable


• Mounting Bracket Kit
