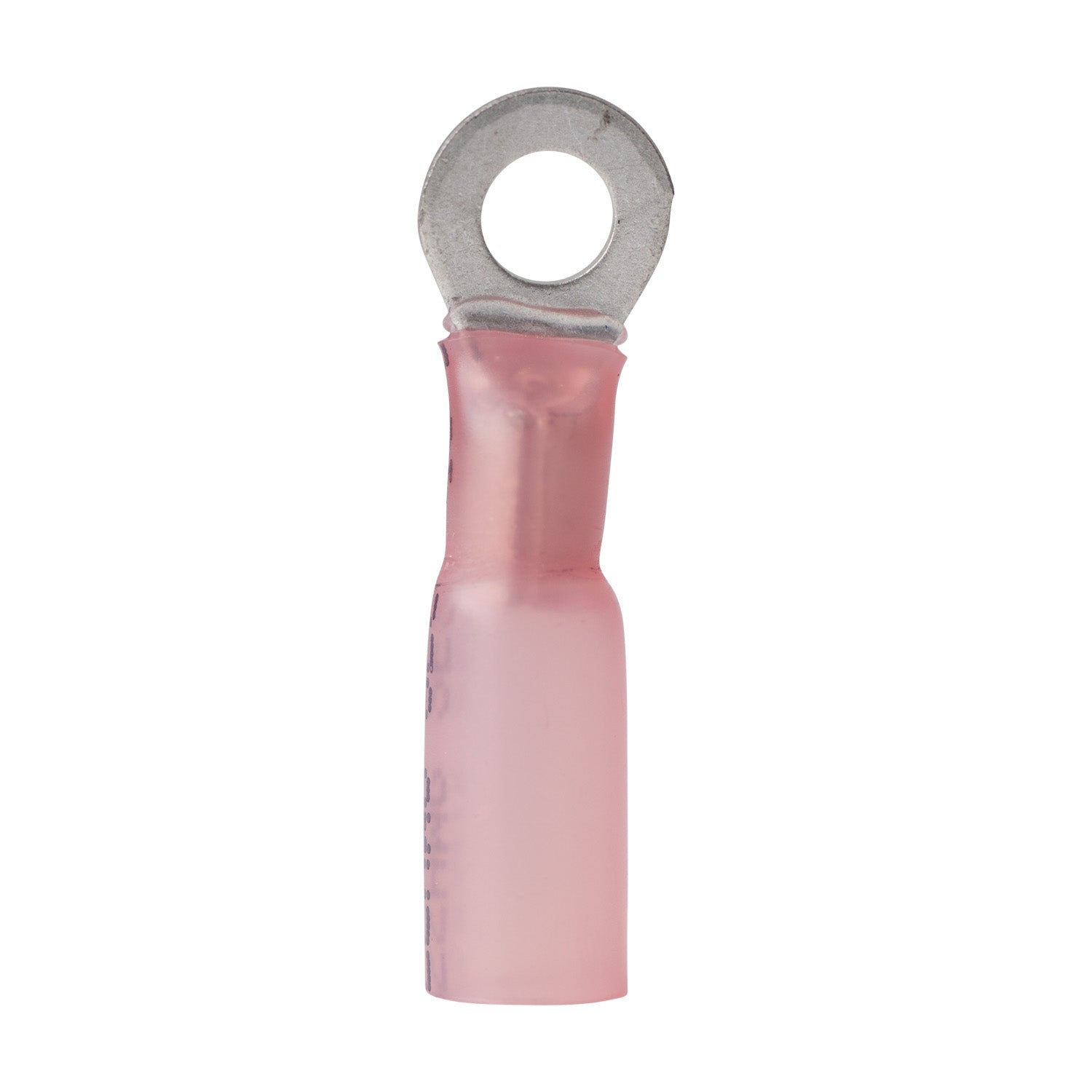

Ancor 22-18 #8 Ring Terminal Heat Shrink Red 100 Pack

Ancor 22-18 #8 Ring Terminal Heat Shrink Red 100 Pack

• Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC.
• Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief.
• Nylon insulator, preferred by experts, for Marine Grade™ resistance to sunlight, water, oil, chemicals, vibration and cut-through damage.
• UL Listed and CSA Recognized
• Highest shrink ratio - shrinks to 1/3 original size.
• Shrinks at 257° F/125° C.
• Operating temperature range 40° C to 110° C.
• ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing
• Shrinks to form a water tight seal and the ultimate vibration and strain relief.
• Tinned for corrosion resistance.
• Pure copper for maximum current flow.
• Brazed seam for maximum strength.

  Wire Range mm Screw Size Qty/Pkg Part No 12-10 3-5 #10 100 312399   12-10 3-5 #8 100 312299   12-10 3-5 3/8 100 312699   12-10 3-5 5/16 100 312599   12-10 3-5 1/4 100 312499   16 - 14 1-2 1/4 100 311499   16 - 14 1-2 5/16 100 311599   16 - 14 1-2 3/8 100 311699   16 - 14 1-2 #8 100 311299   16 - 14 1-2 #10 100 311399   22 - 18 0.3-0.8 #10 100 310399   22 - 18 0.3-0.8 #8 100 310299   22 - 18 0.3-0.8 3/8 100 310699   22 - 18 0.3-0.8 6.4 100 310499
