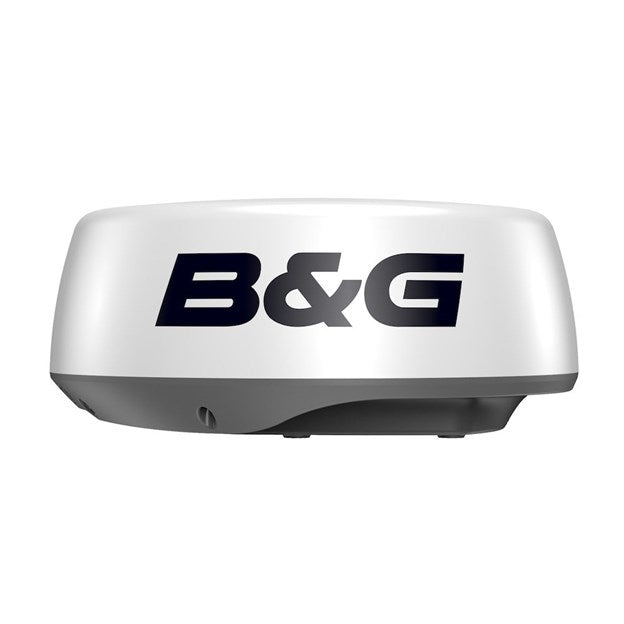

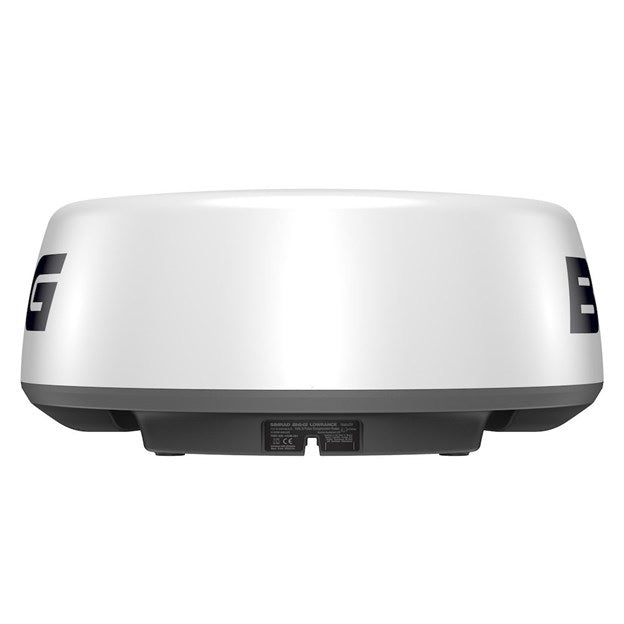

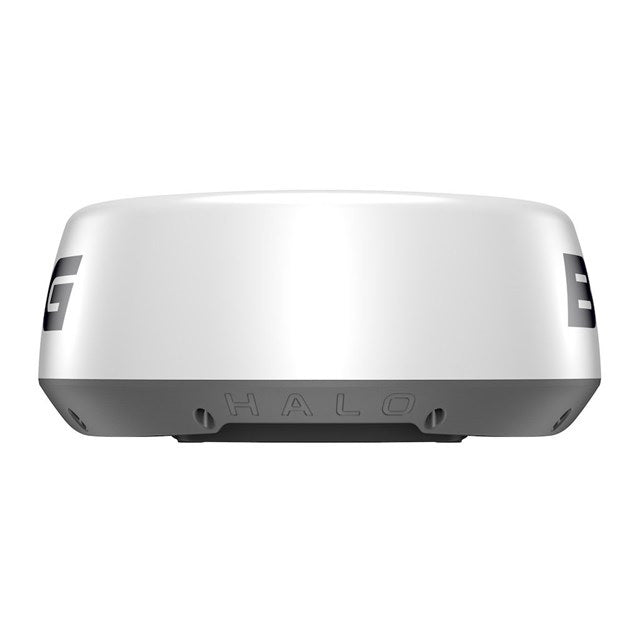

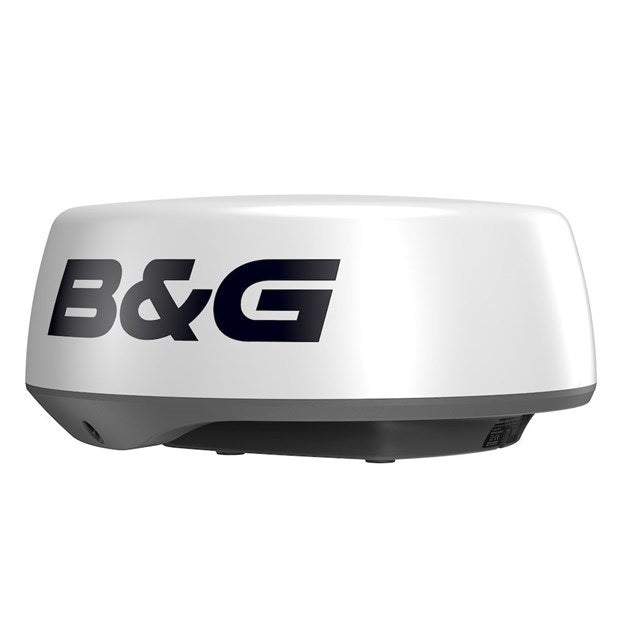

B&G Halo 20 Radar with 20m Cable

B&G Halo 20 Radar with 20m Cable

B&G Halo20 Radar with 20m Cable

• 10W Pulse Compression


• 24 nm range from a compact 20-inch dome


• Unrivalled short range


• Radiation safe


• Easy operation with harbour, offshore and weather mode


• MARPA target tracking


• InstantOn™


• Low Power Consumption


• Low Power Consumption

Extend your view from the bow of your boat out to 24 nautical miles with pulse-compression radar technology that not only delivers a powerful mix of short and long-range detection, but provides precise target definition with minimal clutter.

HALO20 radar delivers a comprehensive range of features to enhance your situational awareness and on-water safety. Monitor selected collision hazards with MARPA target tracking, tracking up to 10 targets. Whether you’re navigating through crowded waterways or contending with poor visibility, HALO20 radar cuts through the clutter to give you a clear and current picture of your surroundings.

HALO20 Radar wakes instantly from its low-power standby mode, delivering radar coverage exactly when and where you need it. Even if your HALO20 radar is completely powered down start-up is a matter of seconds, not minutes like traditional pulse radar.

Harbour, Offshore, Weather and custom modes tune HALO20 Radar’s advanced signal processing to help ensure that targets can be seen vividly — even in the toughest environmental conditions.

Waterproofrating
IPX6

Supply Voltage
10.5 - 31.2 VDC (12/24V systems)

Max Wind Speed
100 knots (51 m/s)

Power Consumption typical
18W

Warranty Period
2 Years

Power Consumption max
20W

Max Range, scale
24 NM

Rotation speed
24 RPM

Operating Temperature Range
-25° to + 55°C (-13° to +130°F)

Beam width
4.9° H x 25° V

Weight
5.9 kg (13 lbs) without cable

Min Range, scale
50 m / 200 ft / 50 yd

Dimensions W x H x D
510mm dia x 223 mm H. (20" dia x 8.8" H)

Recommended Fuse Rating
5A

Humidity
95% RH at 35°C (95°F)

Interface
B&G MFD

Radar Modes
Harbour, Offshore, Weather, North Up, Course Up, Relative motion, True Motion

Radar Technology
Pulse Compression

What's in the Box:

• Halo 20 Dome


• 20m cable for HALO Dome Radar / Nemesis™
