B & G Hydraulic Ram T0 12V

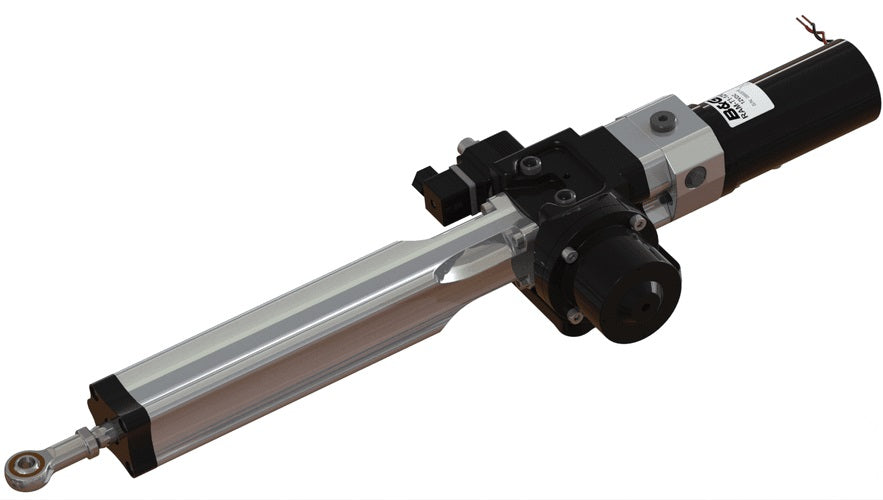

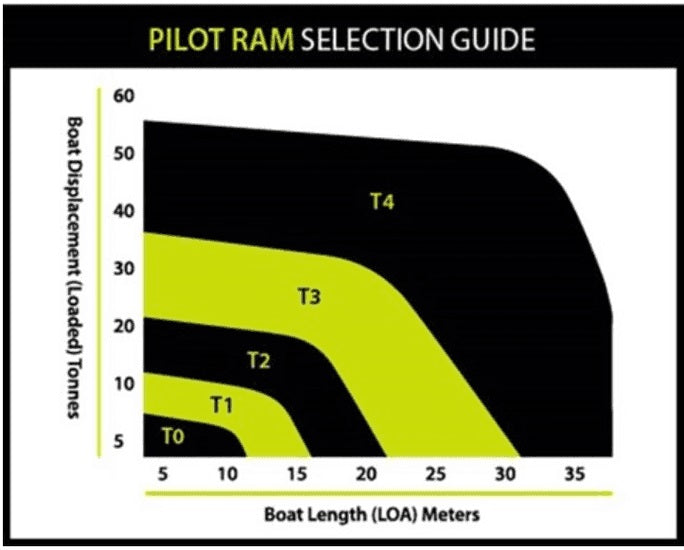

The RAM T0 Hydraulic linear actuator combines a cylinder, pump, motor, clutch, and reservoir in a pre-filled, sealed unit. Designed to be used on vessels fitted with mechanical primary steering that can be back-driven. When the clutch is disengaged the cylinder is free and moves with the primary steering. To operate the unit in autopilot mode the course computer energizes the clutch solenoid coil and runs the bidirectional motor to extend and retract the ram. Internal relief valves protect the unit and its mountings from rudder strikes, grounding, etc

Voltage
12 VDC

Current
60 kg at 25% duty - 1.3A // Intermittent 350 kg - 14.0 A

Hard-over time
12 seconds (Nominal)

Volume (average)
234cc

Ingress protection
IP67

EMC Protection
BS EN 60945:2002 (DC)

Ignition Protection
BS EN 28846:1993

Declaration of Conformity
EMC Directive 2014/30/EU

Ambient temperatures
-15 to + 55 deg C

Max thrust
350 kg (Intermittent)

Dimensions
101 x 728 mm

Construction
Aluminum

Max Stroke
203 mm

Coupling Radius
178 mm

Max Torque
545Nm

Orientation
Red lead to positive - Extends // Black lead to positive - Retracts

Clutch coil
12 watt

Clutch connection
DIN 43650 (6-8 mm cable)

Fluid
ISO VG10 to VG40 hydraulic mineral fluid to ISO 6743-4 HV

Suitable commercial Fluids
Fuchs Renolin B 15 HV1 // Seastar HA5430

Weight
8 kg
