B&G ZG100 GPS Module

B&G ZG100 GPS Module

Regular price $305.00 USD
Regular price $305.00 USD Sale price $305.00 USD
Sale Sold out
Shipping calculated at checkout.

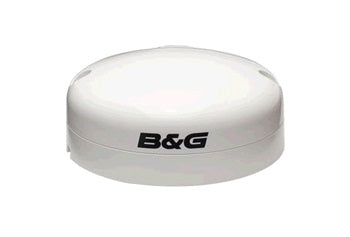

B&G ZG100 GPS Module

B&G ZG100 GPS Antenna with Integrated Compass sensor

Model: 000-11048-002

  • NMEA 2000 antenna module offers rugged and precise position, and heading sensor

  • Spot-on, around-the-world accuracy -- supporting GPS and GLONASS, WASS/EGNOS/MSAS; Galileo-capable with future software update

  • Excellent time-to-first-fix, multi-GNSS, high-speed updates — up to 10 times per second - for smoother and more accurate location updates

  • Integrated rate stabilized compass to provide chart stabilization, accurate course over ground filtering at low speed, and radar overlay

  • Rugged design for all marine environments and fully waterproof

  • Include spat/pole mount for easy installation and flexible boat location for optimal performance

  • Independent source selection on any display

The ZG100 GPS Antenna with Integrated Compass sensor providing Heading, Heel and Trim.

Note: Not suitable for MARPA or Steering of an Autopilot. Please use an Precision-9.

Specifications

General

Receiver
Type L1, C/A code, 1.575 GHz Frequency/L2 C/A code, 1.602 GHz Frequency

Channels
32 channels

Position Update Rate
Up to 10 Hz (1,5,10)

Horizontal Accuracy
3 m (9.8 ft)

Heading Accuracy
+/- 3°

Rate of Turn
+/- 3°

Pitch / Roll Accuracy
@30 degrees 1 grade error

Cold Start
50 sec

Start-Up Time
3 sec

Satellite Reacquisition
5 sec

Environmental

Operating Temperature
-25° C to +60° C

Storage Temperature
-40° C to +85° C

Splash Proof
IPX7

Humidity
40° C, 93%RH, operating

Electrical

Input Voltage
9 V DC - 18 V DC

Reverse Polarity Protection
Yes

Power Consumption
< than 2w

Current Consumption
< 100 mA @ 12 V DC

Dimensions
90 mm (diam) x 38mm (height) 3.54" (diam) x 1.50" (height)

Weight
0.14 Kg (0.3 lbs) aprox

Power/Data Cable
NMEA 2000 thru NMEA 2000 network

Antenna Connector
NMEA 2000 Micro C: Lowrance attached cable with Micro-C connector

Mounting
Flush mount / Standard Pole Mount

Communications

Data I/O Protocol
NMEA 2000


What's in the Box:


  • ZG100 GPS Antenna

  • N2KEXT-6RD - 1.82 m (6-ft) NMEA 2000® cable

  • N2K-T-RD - Micro-C T-connector

  • Pole Mount
