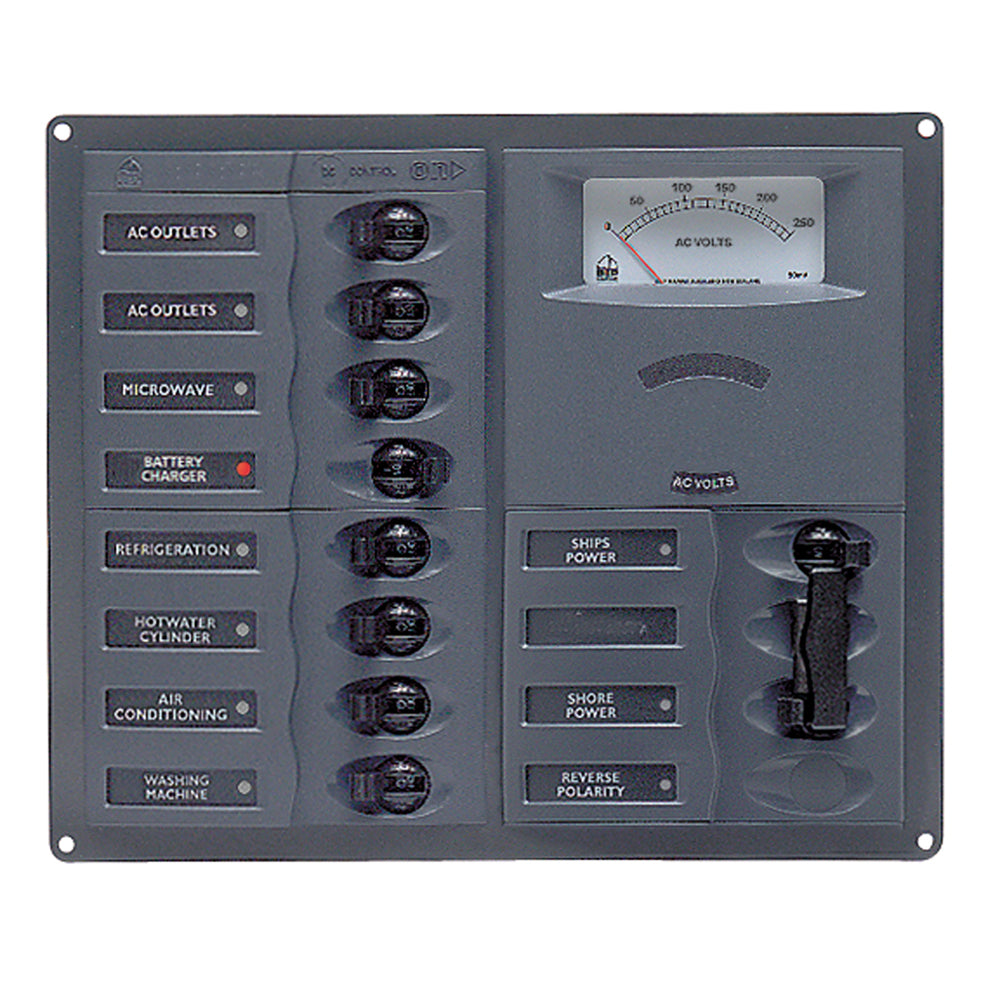

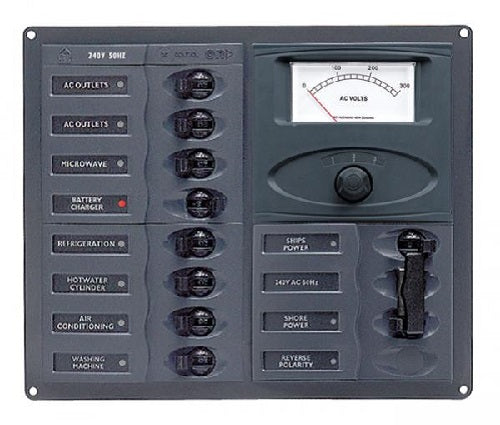

BEP 900-AC2H-AM-110 10 Way AC Circuit Breaker Panel

BEP 900-AC2H-AM-110 10 Way AC Circuit Breaker Panel

Size (HxWxD): 200x239x65
Label Sheet: Set - 5
Buss Bars: Yes x 2 (Earth & Neutral).
Volts: 230V or 110V

Meter: Analogue volts.

Circuit Breakers:
Single pole
1 x 5amp
3 x 10amp
3 x 15amp
1 x 20amp
Double Pole
1 x 25amp
1 x 20amp

Includes lock out control and reverse polarity indicator.

AC Control Panel - Analogue Meters

Volts Size Inches
Size mm

Label

Sheet s

C/Breakers

Single Pole

C/Breakers

Double Pole

Neg Bus


Part No.

5 10 15 20 25 30 20 25 30 50 80
110 7.9x5x2.5 200x127x165 5     2           1     1S-6MM-2 900-ACM2-AM-110 110 11.6x5x2.5 295x127x65 5 1 3 3 1     1   1     1S-6mm-2 900-ACM6V-AM-110  110 7.9x9.75x2.5 200x239x65 5   2 3 2 1       1 1   2x6Way 900-AC2H-AM-110  110 15x5x2.5 380x127x65 5 1 2 3 2 1       1 1   2x6Way 900-AC2V-AM-110
