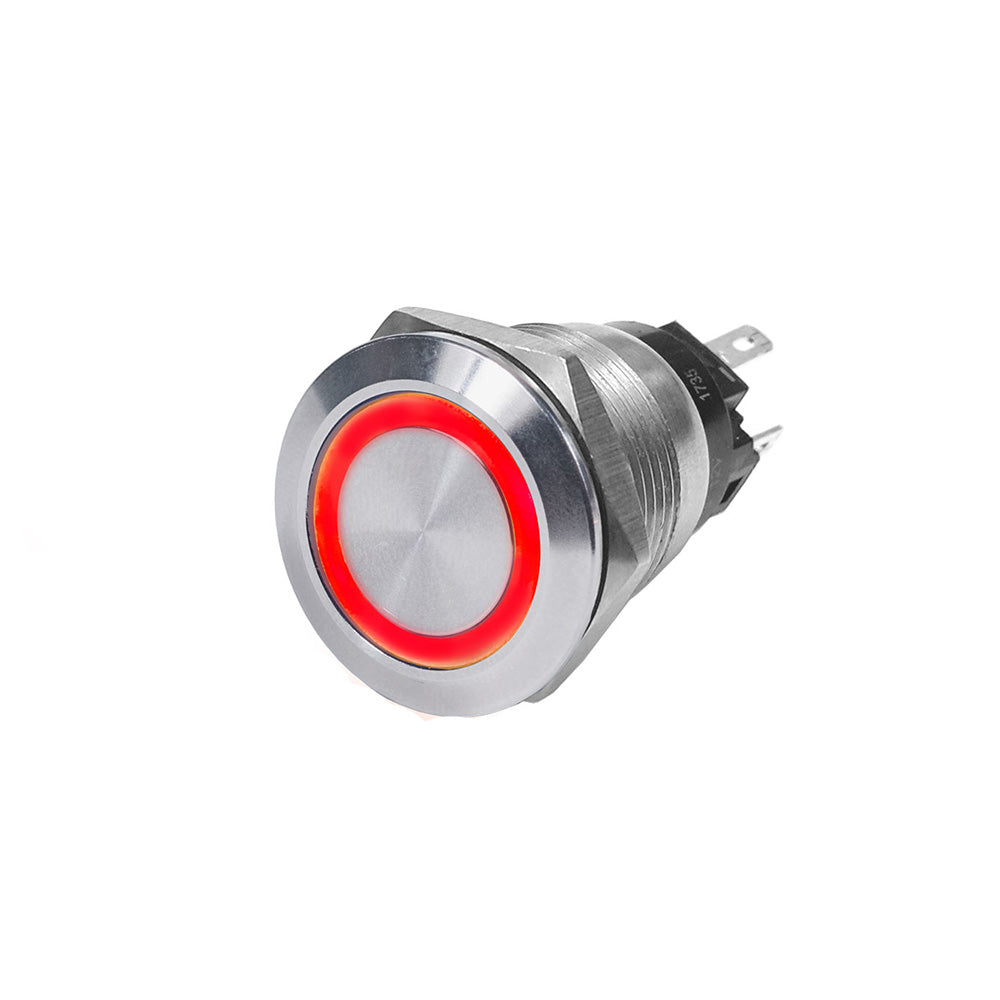

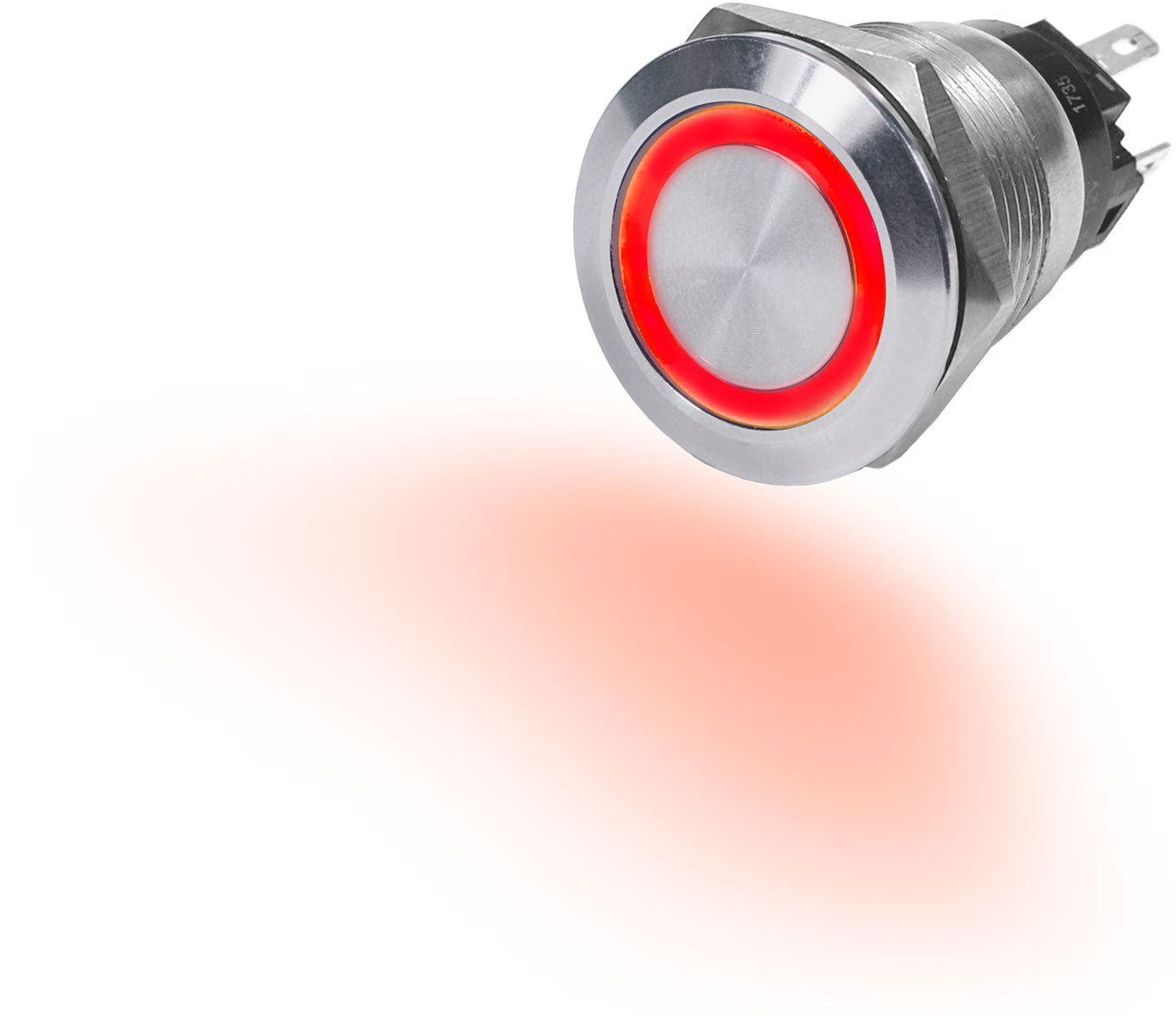

Blue Sea 4162 10A Push Button LED Ring Switch Off-On Red

Blue Sea 4162 10A Push Button LED Ring Switch Off-On Red

Blue Sea 10A Push Button LED Ring Switch Off-On Red

• 10A continuous


• Can be wired for normally open or normally closed


• Installs with .110inch quick connects (included in retail package)

Action
OFF-ON

Amperage
10A @ 12V DC Resistive
3A @ 12V Inductive

Nominal Voltage
12V DC

Maximum LED Operating Current
20mA

Minimum Operating Temperature
-10° C

Maximum Operating Temperature
70° C

Minimum Storage Temperature
-55° C

Maximum Storage Temperature
85° C

Illumination
Independent — Separate contacts for LED power

Max Panel Thickness
0.31in (7.87 mm)

Mounting Hole
¾" (19mm)

Switching Cycles
40,000

Termination
5 — 0.110inch Quick Connect terminals
