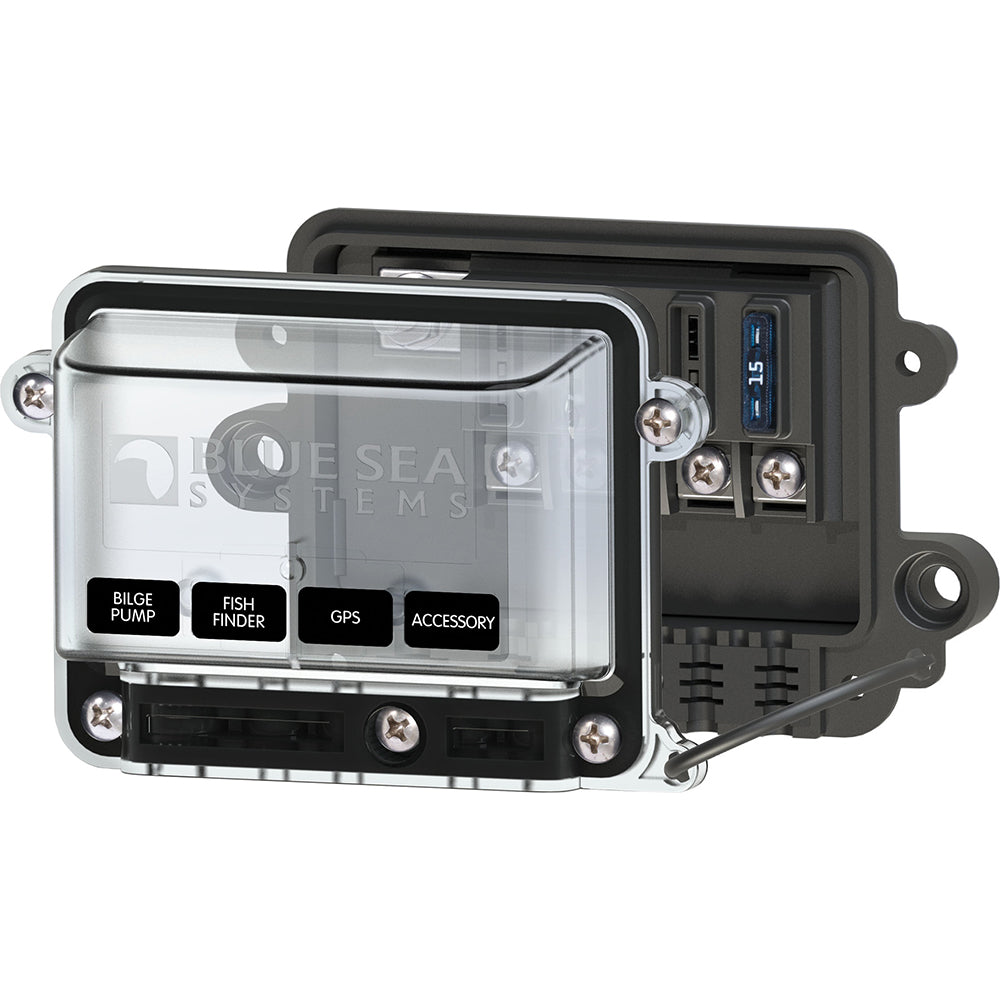

Blue Sea 5056 ST-Blade Water Resistant Fuse Block w/Cover

5056 ST-Blade Water Resistant Fuse Block with Cover

Provides water-resistant circuit protection for ATO/ATC fuses & circuit breakers in a compact footprint. The single side nesting design allows for wire entry from one side to maximize space.

Features:

• Water-resistant design with standard ring or fork type terminals allows for simple wiring with standard tools


• Accepts a wide range of wire sizes


• Includes 3 wire plugs to maintain water resistant rating if less than 4 loads are required


• Accepts ATO and ATC fast-acting blade fuses


• Accepts ATO/ATC-Style Low Profile Circuit Breakers


• Nests with other ST-Blade Water-Resistant Fuse Blocks and Water-Resistant 100A Bus Bars to reduce wire


• Insulating cover meets ABYC/USCG insulation requirements


• Tin-plated copper busses and fuse clips


• Includes four write-on circuit labels


• Small format standard and custom labels available


• Spare fuse and fastener storage in cover

Specifications:

• Amperage: 80A per block/25A per circuit


• Maximum Voltage: 32V DC


• Bus Material: Tin-Plated Copper C11000


• Mounting Holes: Clearance for 1/4" (6mm) screws


• Screw Terminal Type: #8-32 Screws with captive star lock washer


• Wire Size: (1) 8 AWG to 4 AWG - Input/(5) 16 AWG to 10 AWG - Load
