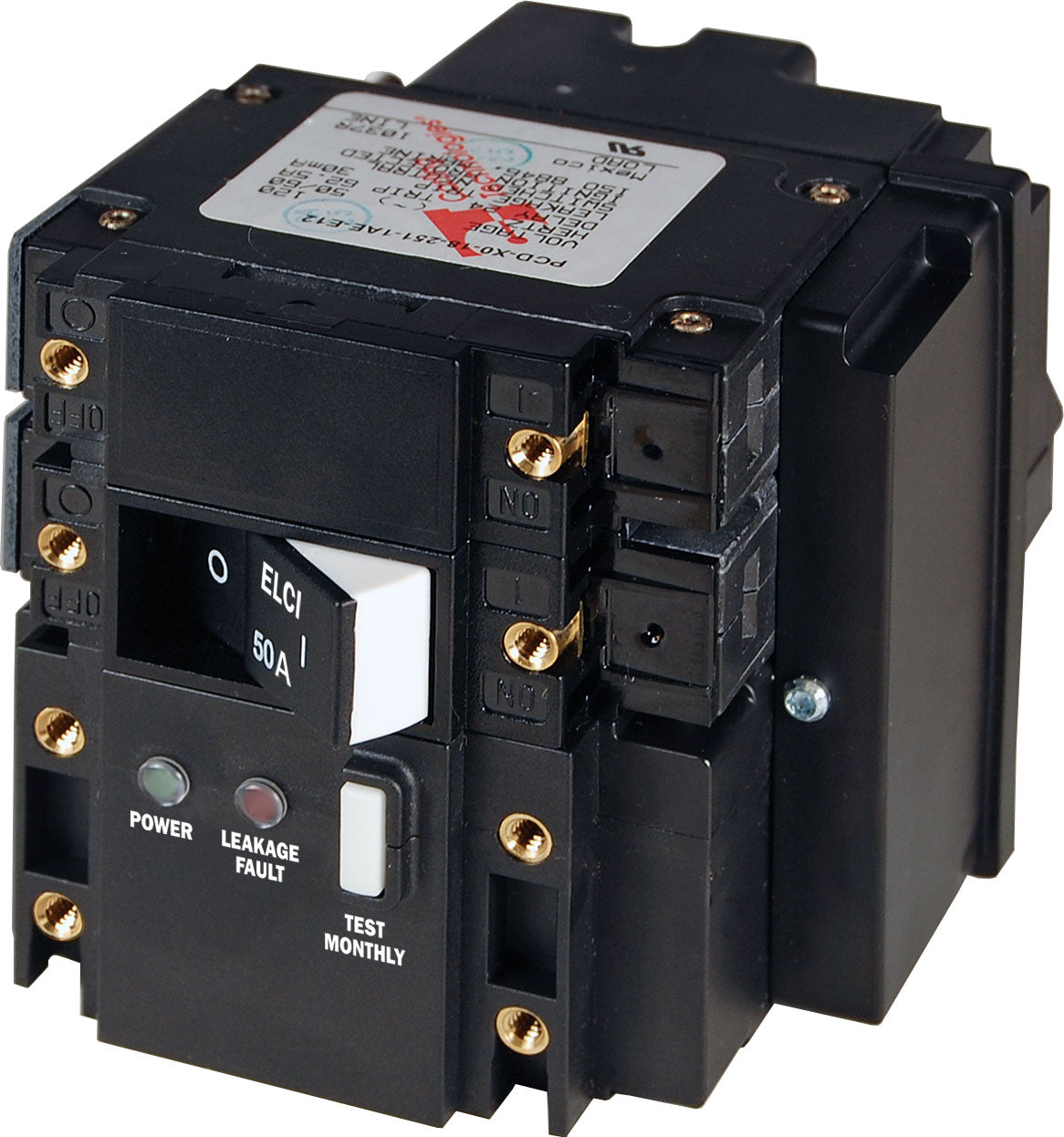

Blue Sea C-Series ELCI 50A 120v AC Double Pole Main Circuit Breaker

Blue Sea C-Series ELCI 50A 120v AC Double Pole Main Circuit Breaker

Blue Sea C-Series ELCI Main Circuit Breaker - Double Pole 120V AC 50A

• Provides over current and leakage protection per ABYC E-11 for whole boat shore power protection


• Meets UL 1500 external ignition protection requirements


• Trips on short circuit, overload, or leakage to ground


• Front panel mount—installed in a power distribution panel

Amperage
50A

Actuator Style
Flat Rocker

Poles
2

Ignition Protected
Yes

Maximum Voltage
120V AC per pole

Circuit Breaker Type
Magnetic Hydraulic - trip free

Interrupt Capacity
5000a

Minimum Operating Temperature
-35° C

Maximum Operating Temperature
66° C

Leakage Trip Amps
30mA

Mounting Screw
#6-32 Stainless Steel

Mounting Screw Torque
6 in-lb (0.68 Nm)

Switching Cycles
10000

Weight
0.85lb (0.39 kg)
