Blue Sea P12 Battery Charger 12v Output 120/230V Input 25Amp 3 Bank

Blue Sea P12 Battery Charger 12v Output 120/230V Input 25Amp 3 Bank

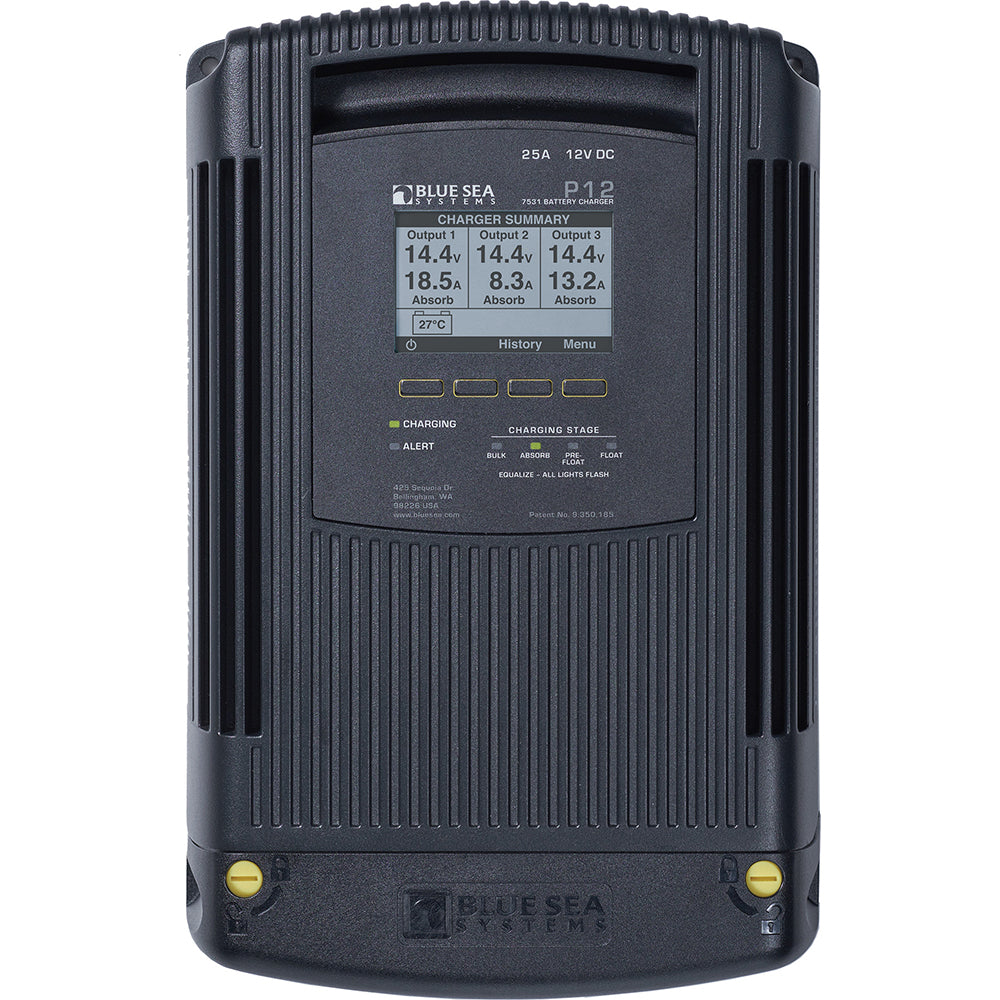

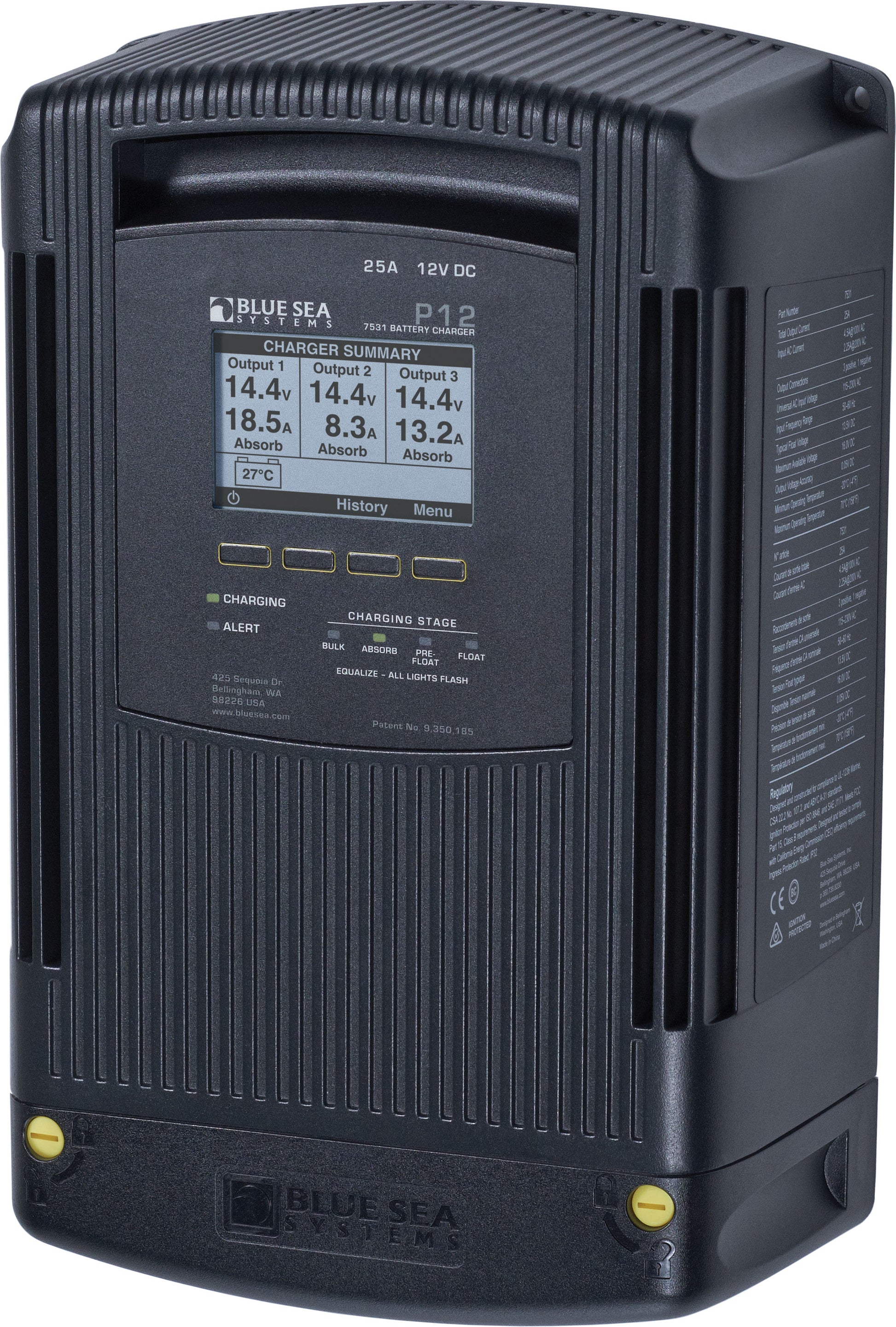

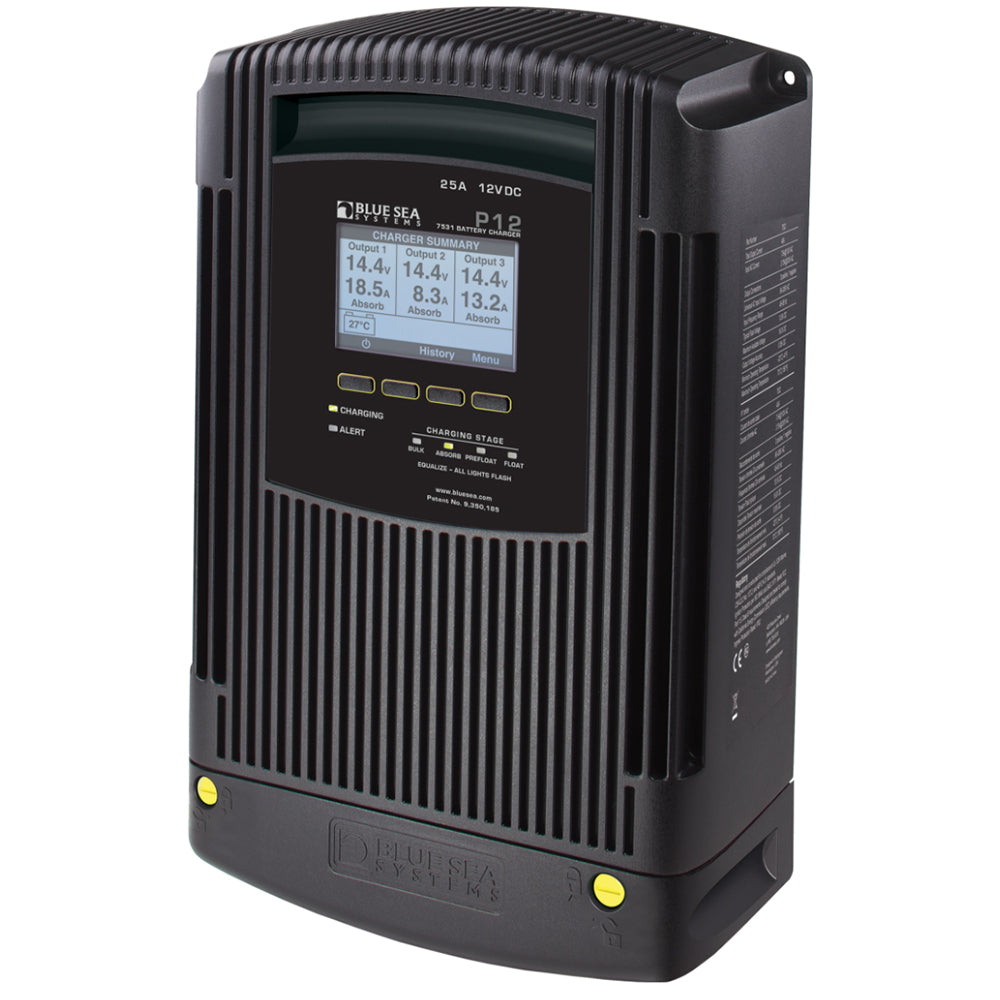

Blue Sea Systems P12 25A 12vDC Battery Charger

• Rugged, finned aluminum case


• Rugged, finned aluminum case


• Power factor corrected for efficient use of AC


• Intuitive diagnostic screens


• User defined charge profiles and customizable settings


• Provides charging for up to three battery banks


• Large, bright display


• Multi-language: English, French, German, Italian, Spanish


• Charge Coordination with Blue Sea Systems Automatic Charging Relays (ACR) controls ACR state ensuring proper float stage for each battery


• Battery Temperature Compensation - adjusts charge voltage based on battery temperature


• AC over and under voltage shut down and automatic restart


• Over and under battery temperature protection - charger will not operate if battery temperature rises above or falls below a set value


• DC over voltage and reverse polarity protection


• Surge and short circuit protection

Total Output Current
25A

Input AC Current
4.5A @ 100V A

Maximum Output Voltage
16V DC

Nominal Voltage
12V DC

Ignition Protected
Yes

Number of Outputs
1 negative
3 positive

Stud Size
M6

Universal AC Input Voltage
115-230V AC

AC Input Frequency
45-65Hz

Output Voltage Accuracy
0.05V

Typical Float Voltage
13.5V DC

Maximum Operating Temperature
70° C

Minimum Storage Temperature
-30° C

Maximum Storage Temperature
80° C

Battery Types
AGM
Flooded Lead Acid
Gel
TPPL

Recommended for Battery Bank Sizes
330Ah Maximum
60Ah Minimum

Screw Terminal Torque
10 in-lb (1.13 Nm) M3
15 in-lb (1.69 Nm) M4

Stud Torque
80 in-lb (9.04 Nm)

Dimension H x W x D
13.03in x 8.46in x 3.66in

Warranty
5 Year

What's in the Box:

• P12 25A Charger


• Mounting hardware


• Ac Strain Releif


• DC Strain relief


• Temperaur Sensor


• Dielectric Grease
