Blue Sea Panel Enclosure 120v AC 50A ELCI Main Surface Mount System

Blue Sea Panel Enclosure 120v AC 50A ELCI Main Surface Mount System

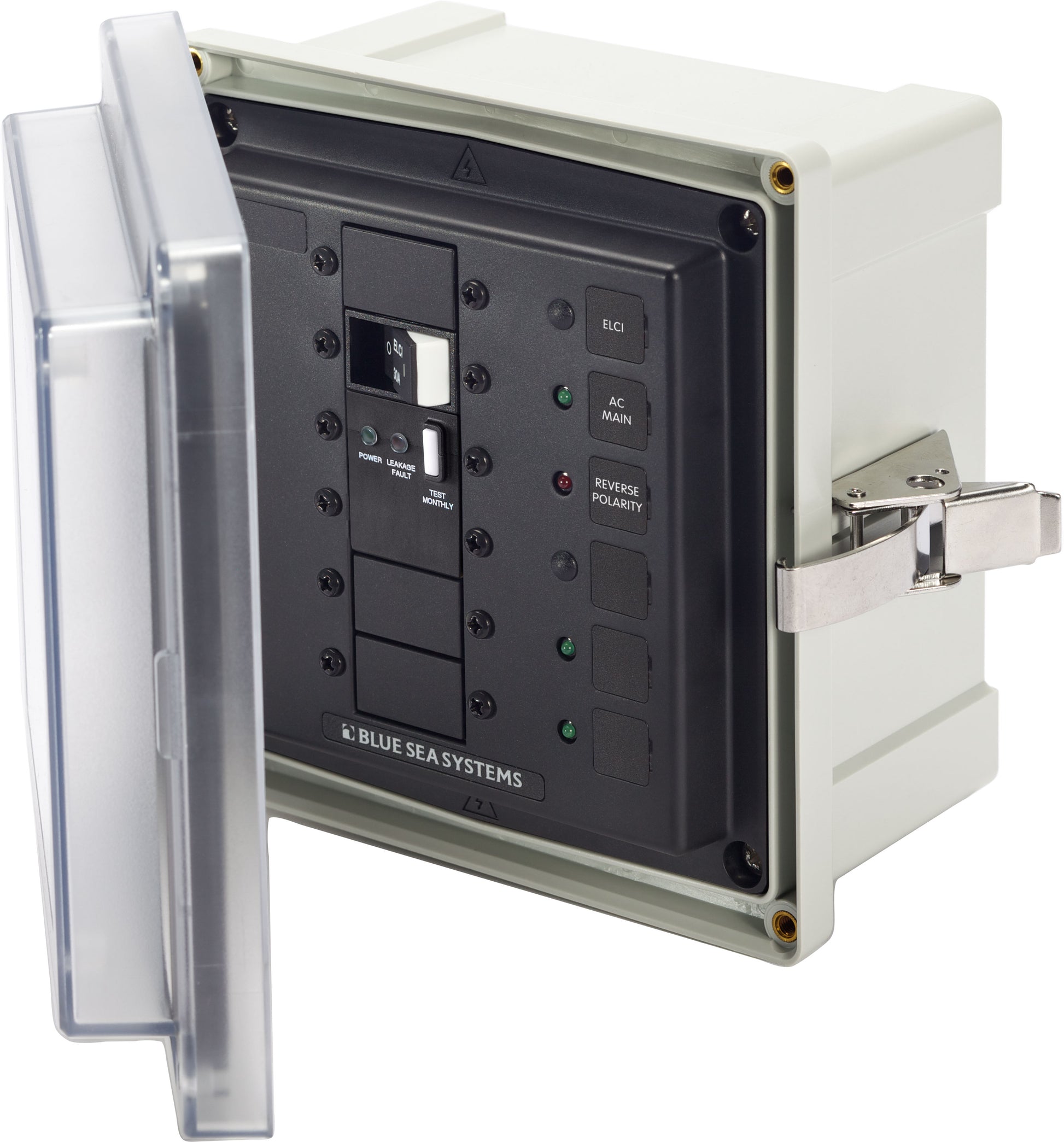

Blue Sea SMS Surface Mount System Panel Enclosure - 120V AC / 50A ELCI Main - 2 blank circuit positions

• Includes one 120V AC / 50A ELCI Main and two blank positions


• Blank apertures for custom breaker loading


• Glass filled polycarbonate mounting box


• Clear cover allows easy view of circuit breaker status


• Overlapping cover for strength and increased gasket protection


• Oversized, formed in place seamless PUR gasket


• Easily removable stainless steel hinge pin for unobstructed installation


• Stainless steel latch secures cover without penetrating the enclosure


• Blank circuit positions accommodate Carling Technologies™ A- and C- Series Flat Rocker and ELCI Main circuit breakers


• Stainless steel mounting hardware included


• Includes waterproof glands


• LED lights for back lighting and ON indication

Panel enclosure for ELCI Main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10 feet of the shore power inlet

Minimum Operating Temperature
-40° C

Maximum Operating Temperature
85° C

Cover Screws and Hardware
10-32 Stainless Steel

Enclosure Size
6.0" x 6.0" x 4.0"

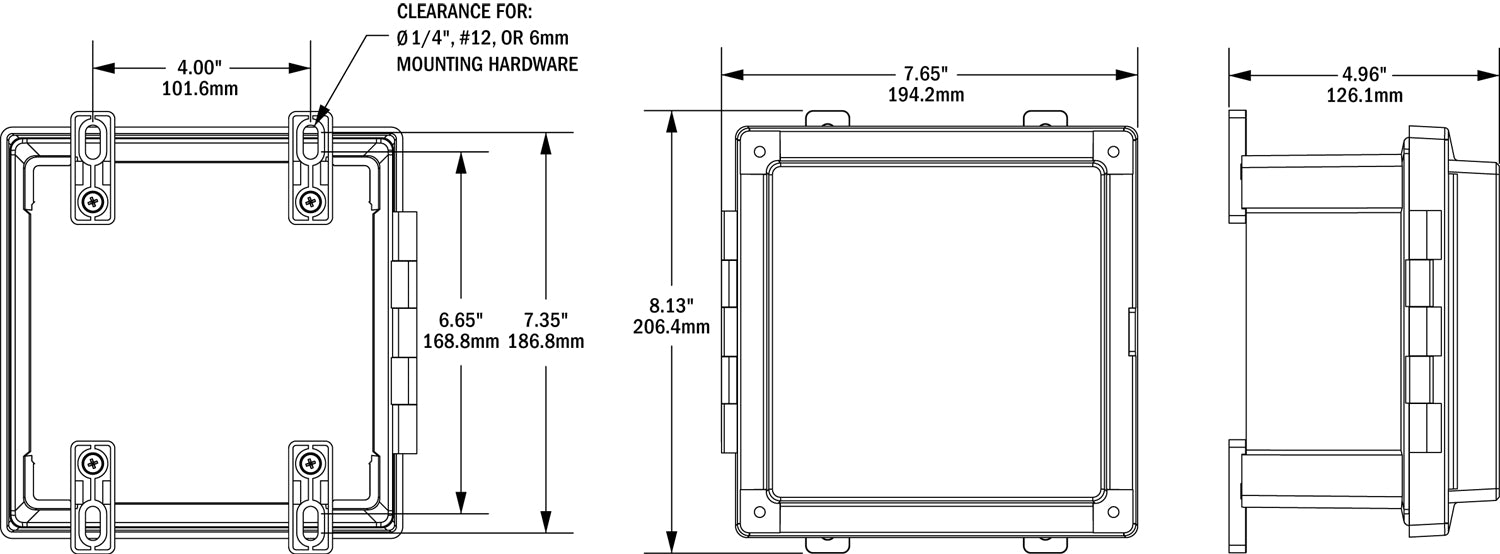

Exterior Overall Dimensions
7.6" x 7.4" x 4.7"

Mounting Hardware
1/4" Diameter, #12 (6 mm)

Weight
7.00lb (3.18 kg)

What's in the Box:

• SMS Panel Enclosure


• ELCI Main 120V 50A, 30mA, 3103


• small wire glands, 3124 x 2


• medium wire gland, 3125


• large wire glands, 3126 x 2


• green "ON" indicating 120V AC LEDs, 8034 x 3


• red "Reverse Polarity" indicating 120V AC LED, 8066


• LED plugs x 2


• circuit breaker mounting screws x 12


• backlit circuit label positions x 5


• AC Main label


• Reverse Polarity label


• ELCI label


• Basic AC labels, 4206


• Panel Voltage ID label-120V AC
