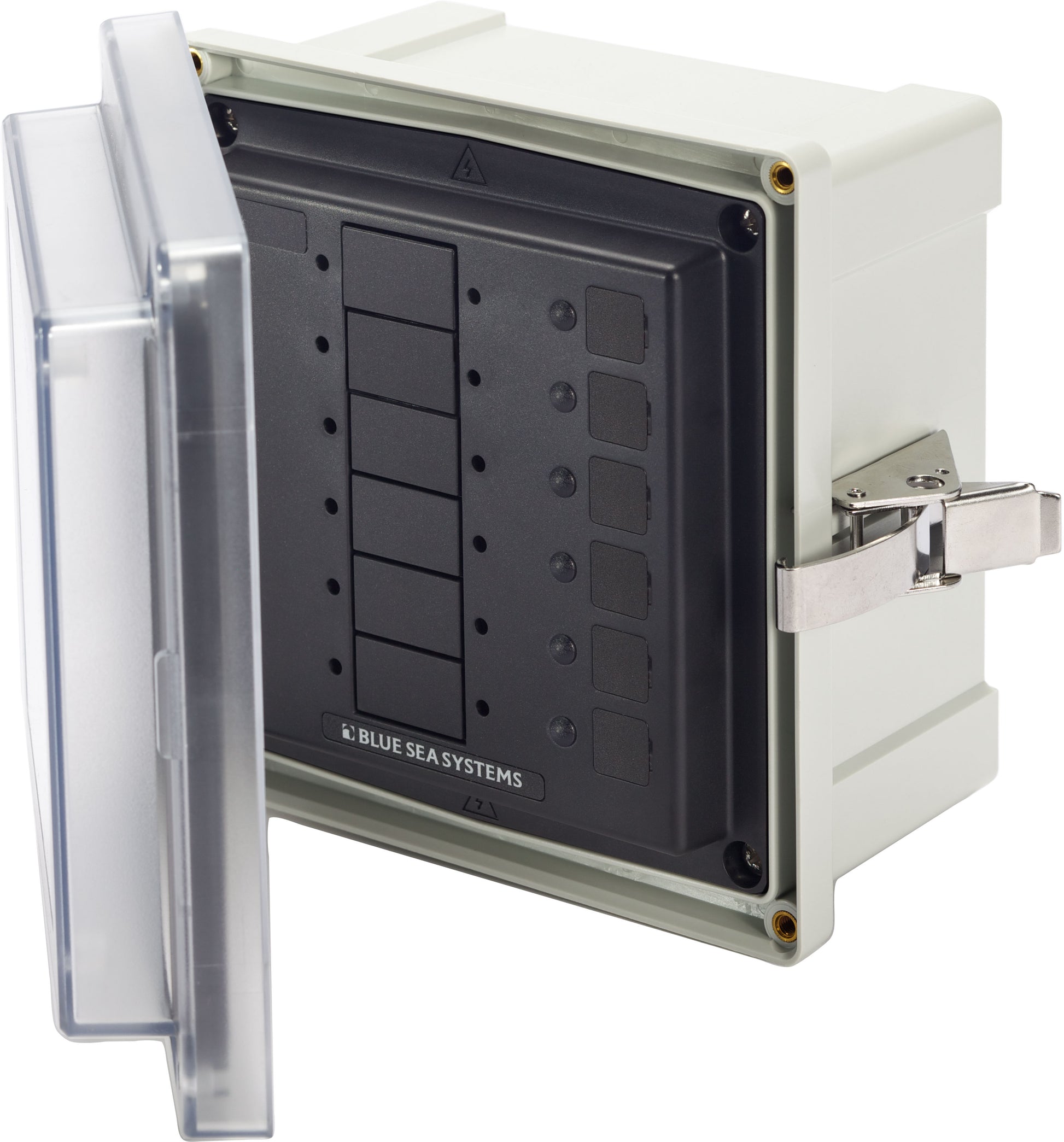

Blue Sea SMS Surface Mount System Panel Enclosure - 6 Circuit Blank

• Blank apertures for custom breaker loading


• Glass filled polycarbonate mounting box


• Clear cover allows easy view of circuit breaker status


• Overlapping cover for strength and increased gasket protection


• Oversized, formed in place seamless PUR gasket


• Easily removable stainless steel hinge pin for unobstructed installation


• Stainless steel latch secures cover without penetrating the enclosure


• Blank circuit positions accommodate Carling Technologies™ A- and C- Series Flat Rocker and ELCI Main circuit breakers


• Stainless steel mounting hardware included

Minimum Operating Temperature
-40° C

Maximum Operating Temperature
85° C

Cover Screws and Hardware
10-32 Stainless Steel

Enclosure Size
6.0" x 6.0" x 4.0"

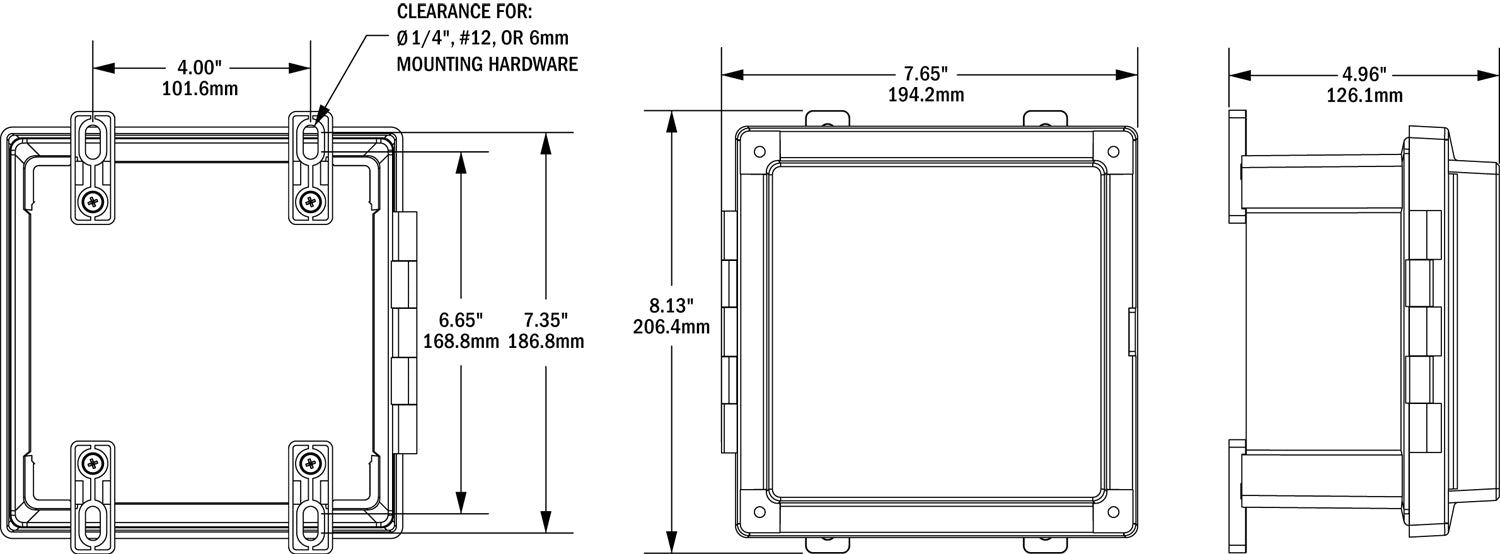

Exterior Overall Dimensions
7.6" x 7.4" x 4.7"

Mounting Hardware
1/4" Diameter, #12 (6 mm)

Weight
7.00lb (3.18 kg)

What's in the Box:

• SMS Panel Enclosure


• 6 LED plugs


• 12 circuit breaker mounting screws


• 30 Basic DC labels, 4205


• 30 Basic AC labels, 4206


• Panel Voltage ID labels 12V DC, 24V DC ,120V AC, 230V AC, 120/240V AC
