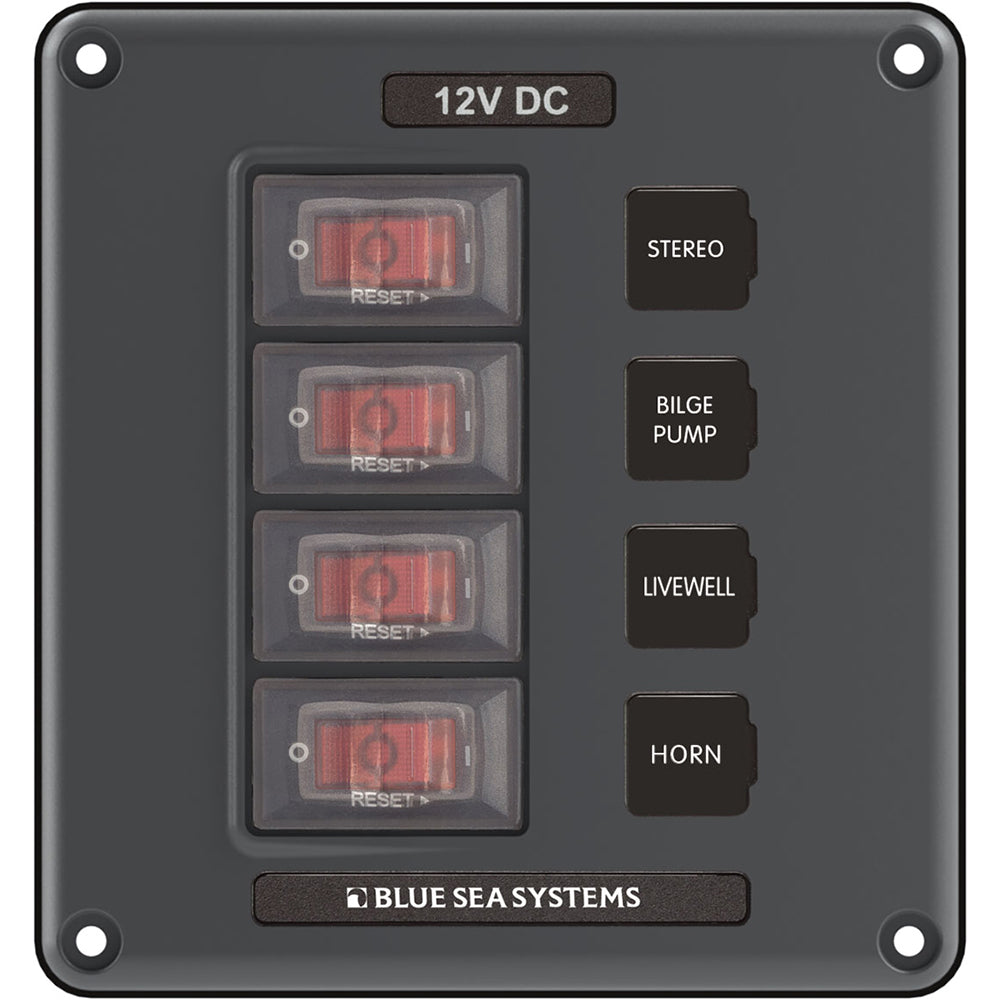

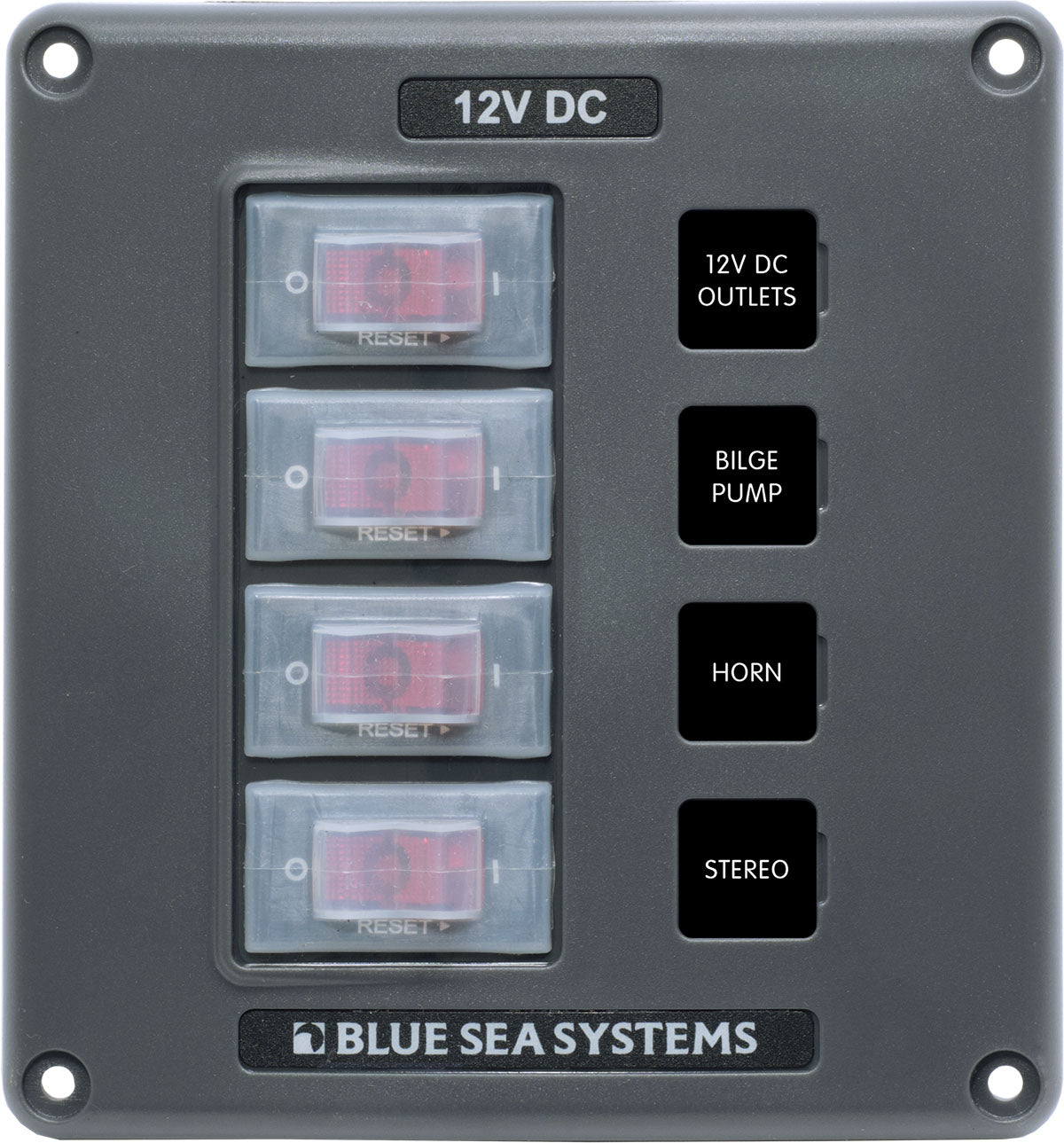

Blue Sea Systems Water-Resistant Circuit Breaker Switch Panel - Gray, 4 Positions

• Illuminated 15A circuit breakers provide switching, "ON" indication and overcurrent protection


• Industry-standard sizes and mounting allow these panels to be easily retroftted in an existing application


• Polycarbonate/ABS panel surface is UV-stabilized, ?ame retardant, and will not corrode


• Silicon breaker boots and gasket protects against water ingress


• Low profle makes it easy to install in tight spaces


• Fast-on circuit breaker connectors make it quick to wire

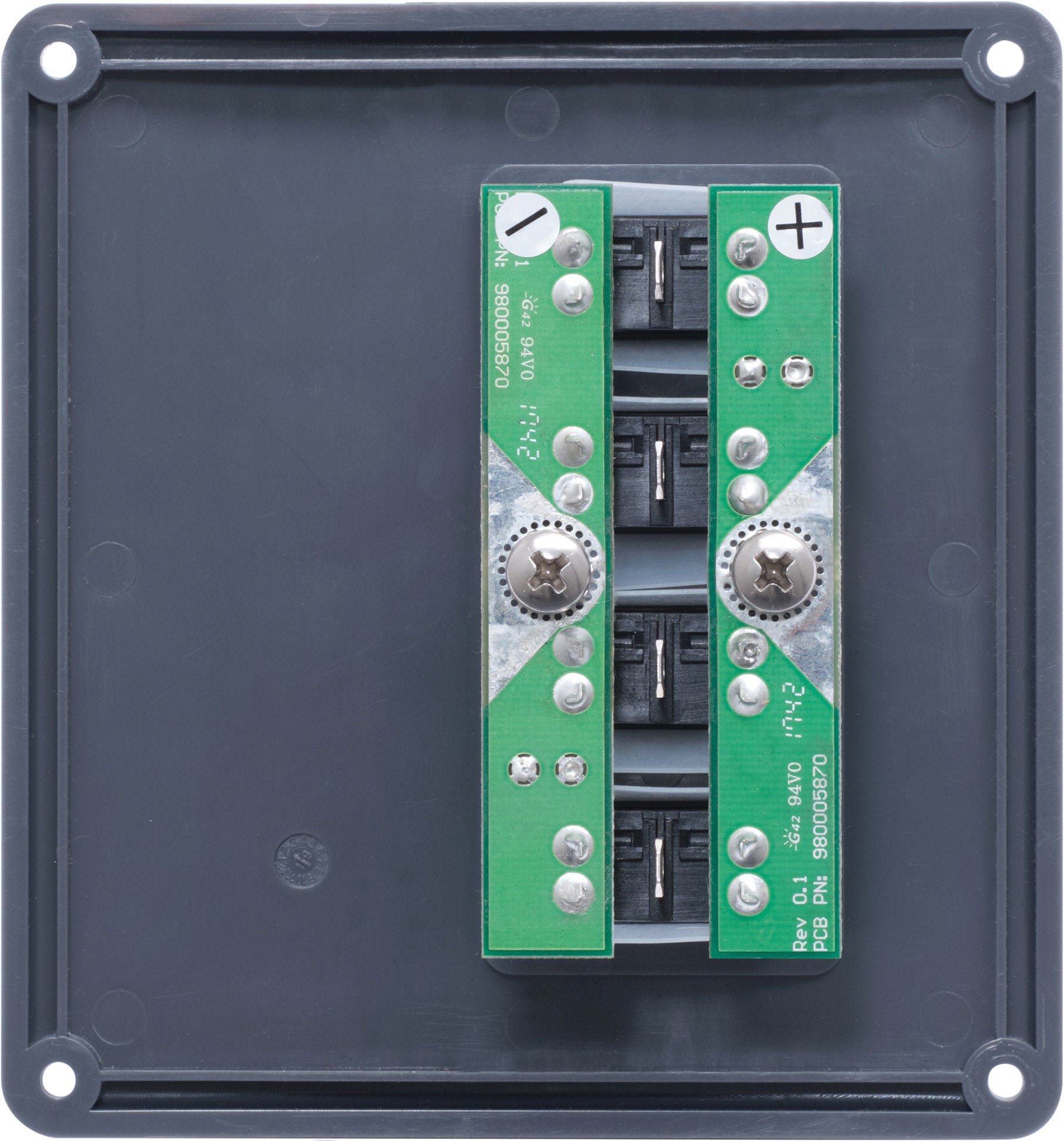

• Two-wire connection for powering all panels is simple and requires #10 ring terminals. Terminals screw to bus bars for secure connections


• Set of 15 square format circuit labels are included, and are easy to replace. Additional standard or custom labels are available through Blue Sea Systems

Color
Gray

Positions
4

Nominal Voltage
12V DC

Circuit Protection
Circuit Breaker

Maximum Amperage
45A 9A @ 24V DC (per circuit)

Terminal Type
1/4" Male quick connect

Hardware
Stainless Steel #6 x 5/8" mounting screws

Ring Terminal Size
M5 (#10)

Dimensions
5.0" H x 1.75"D
