Blue Sea Weather Deck Panel 12v 8 Circuit Breaker Panel

Blue Sea Weather Deck Panel 12v 8 Circuit Breaker Panel

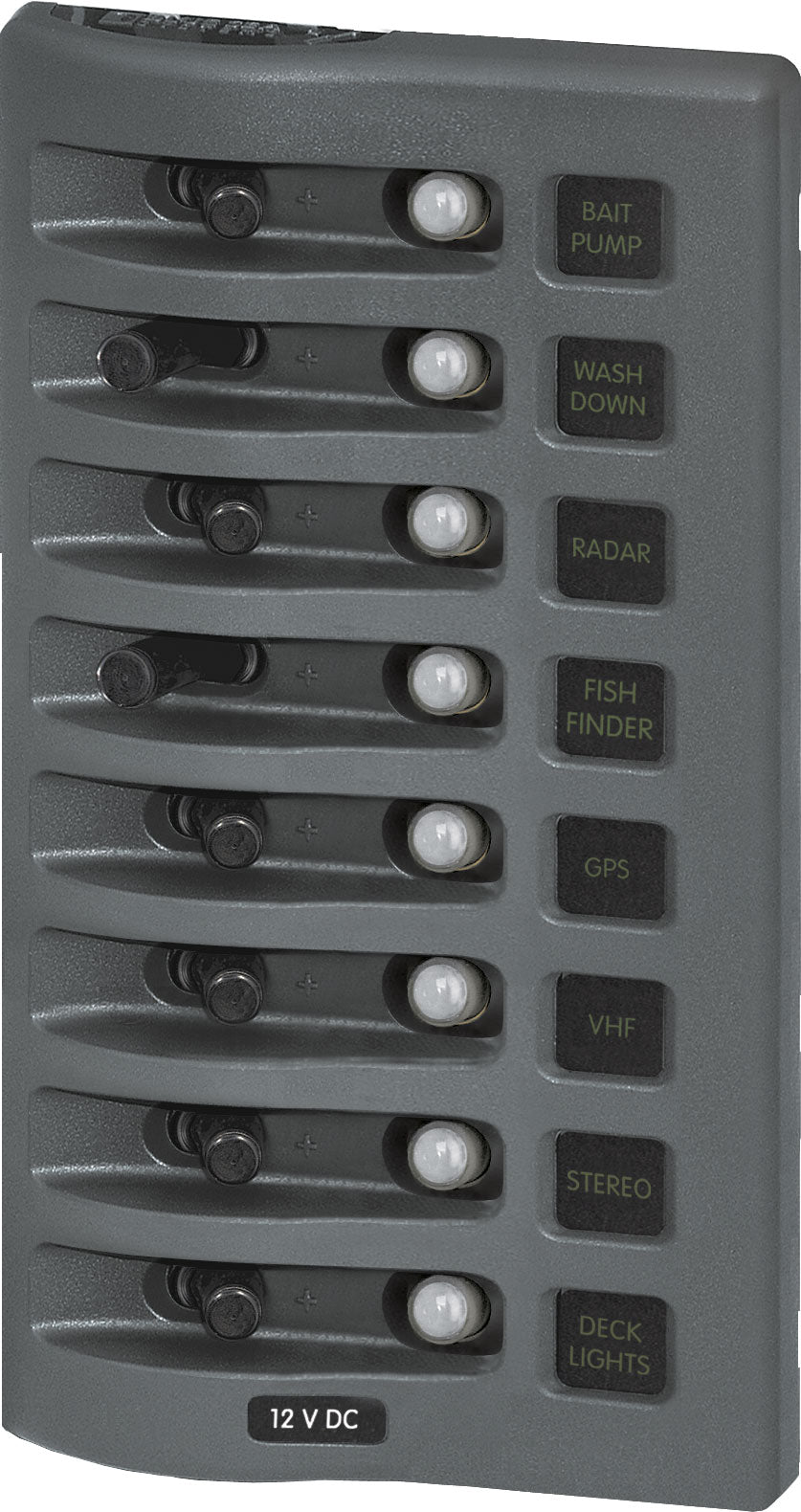

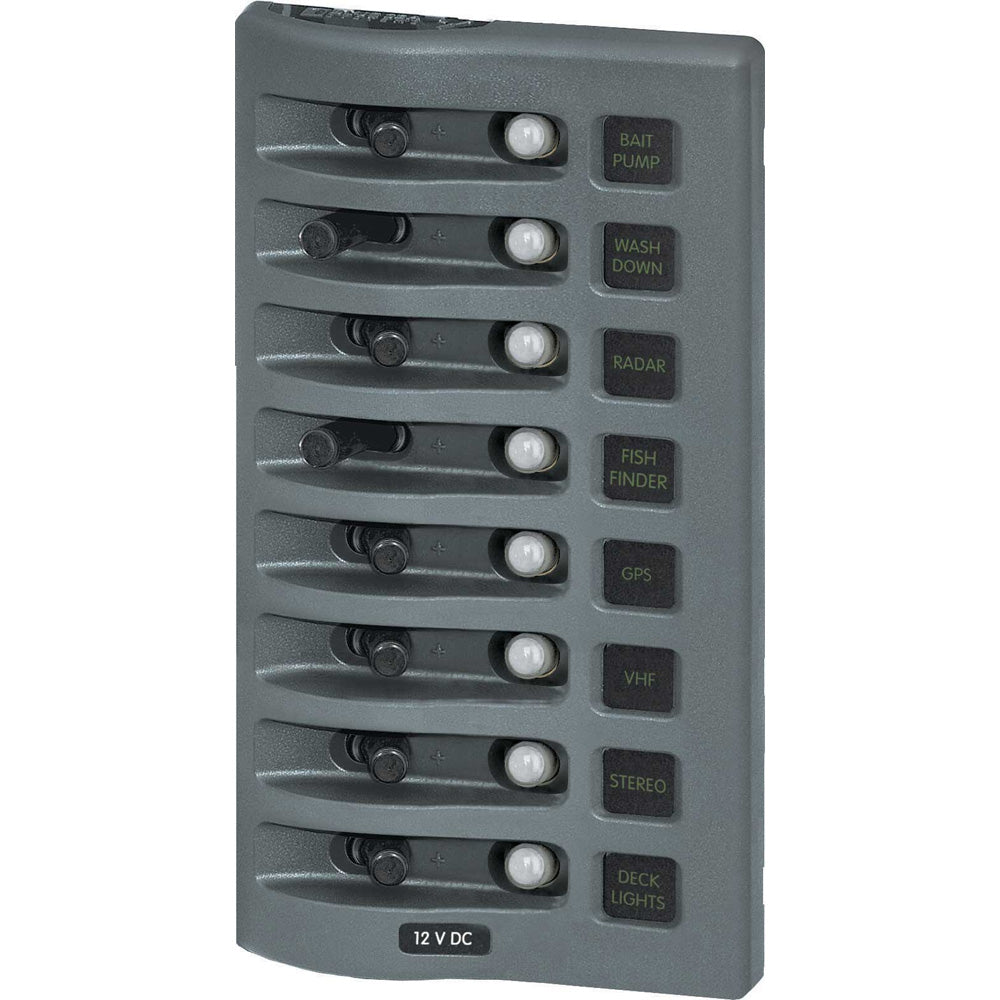

Blue Sea Systems Weather Deck 12V DC Waterproof Circuit Breaker Panel - Gray 8 Positions

• Rated IP67-temporary immersion for 30 minutes


• Designed for flybridge and open cockpit applications


• Independent label backlighting allows switching and dimming


• Compatible with all Blue Sea Systems Digital Dimmers


• Each panel can be mounted in four different orientations


• Green LEDs aid low-light readability. All labels will be lit when the panel is powered, regardless of individual switch position.

Weatherproof
Waterproof

Positions
8

Nominal Voltage
12V DC
24V DC

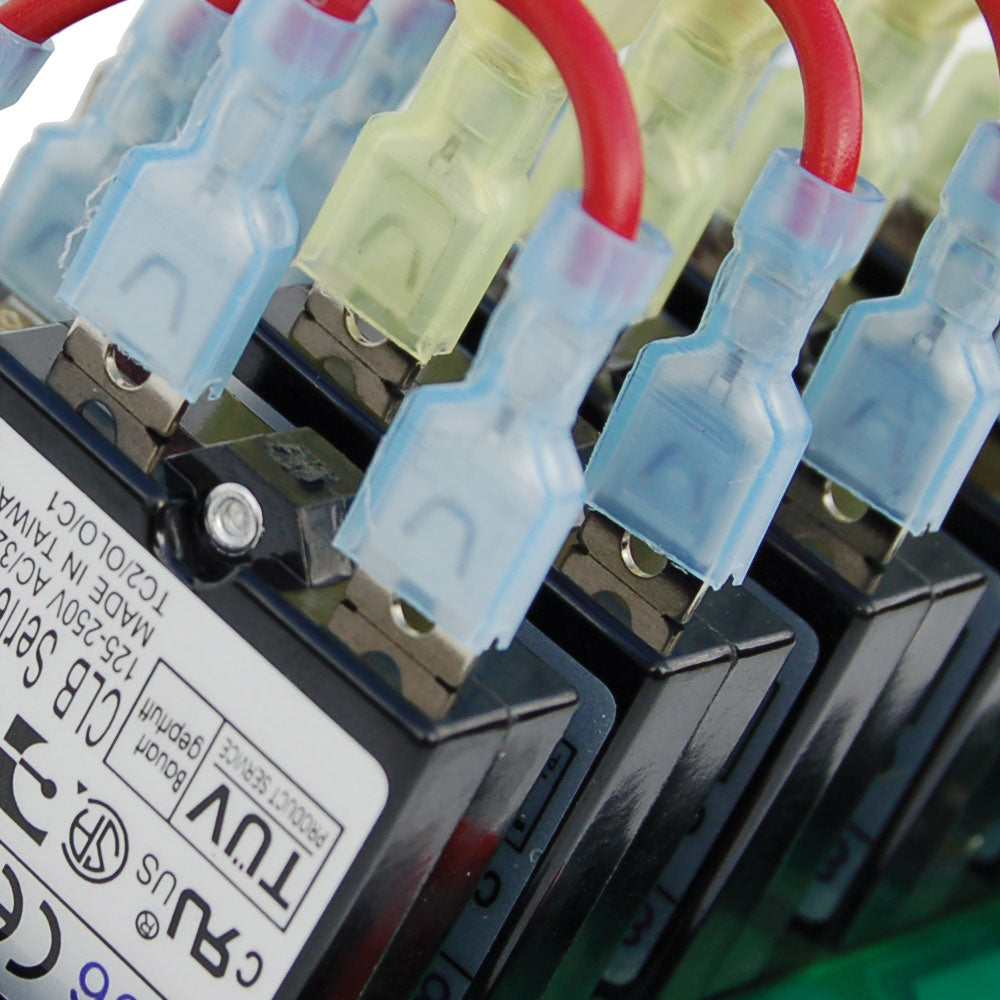

Circuit Protection
Circuit Breaker

Maximum Amperage
15A @ 12V DC (per circuit)
9A @ 24V DC (per circuit)

Panel Cumulative Rating
45A

Backlit Label
Green LED

Backlighting Amperage
10mA /Illuminated Circuit

Backlighting Voltage
12 or 24V DC

Material
Reinforced Polycarbonate

Dimensions
7.70" H x 4.25" W x 3.5"D
