FLIR M324S Thermal Camera 320x240 30Hz With JCU

FLIR M324S Thermal Camera 320x240 30Hz With JCU

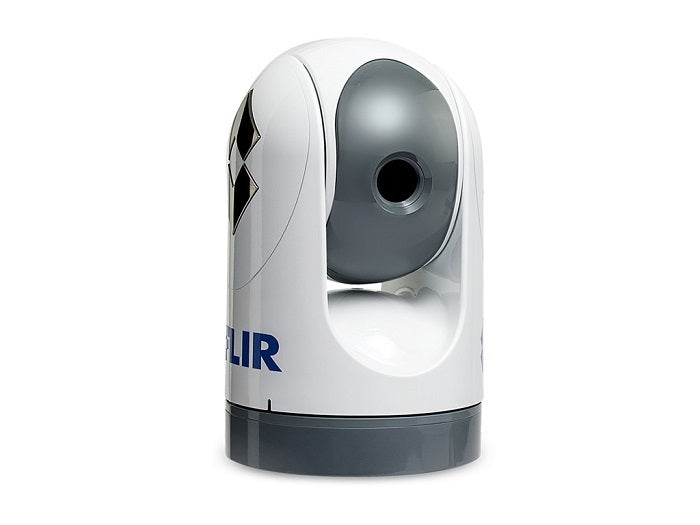

FLIR M-324S 320 x 240 Thermal Camera with JCU

Model: 432-0003-66-00

• Advanced features improve situational awareness


• Detects other vessels, small craft, floating objects, and hazards—day or night—through darkness, glare, dust and light fog


• Display on any marine monitor, or integrate M-Series thermal imaging right on your marine multifunction display alongside charting and radar


• Simple joystick control of pan, tilt and zoom. Optional advanced touchscreen control from select marine multifunction displays


• Integrates seamlessly with existing electronics including select multifunction displays from Raymarine, Furuno, Garmin, and Simrad


• Slew-to-Cue target tracking from compatible radar, AIS and chart systems


• Composite video output for easy connection to MFDs and monitors


• Engineered especially for harsh marine environments


• Color symbology on-screen gives instant access to system status, position, and configuration


• 360° Continuous Pan, +/-90° Tilt with joystick control


• Gyro-stabilization - Now standard across the entire M-Series line


• Latest Generation Thermal Detector - For sharper details and better image quality

The M-Series pan/tilt re-defines maritime multi-sensor system design, drawing on FLIR’s 25 years of experience in building combat-proven airborne and maritime thermal imagers for militarys, coast guards, and governmental agencies around the world. With up to 320 x 240 thermal imaging, M-Series cameras let you see more — and see farther — than ever before. Even in the dead of night.

The M-Series creates thermal images with tremendous detail for such an affordable night vision system. You will see more—and see farther—even in the dead of night. And M-Series cameras also feature detailed, color on-screen symbology for instant access to system status, position, and configuration. Resolution (320 x 240 324 Series or 640 x 480 625 Series pixels) is model dependent.

Specifications

Main Thermal Camera

Detector Type
320 240 VOx Microbolometer

Video Refresh Rate
30Hz NTSC

Field of view
24° 18°

Focal Length
19mm

Focus
Fixed 12ft (3.6m) to infinity

Continuous E-Zoom
2x

Image Processing
FLIR Proprietary Digital Detail Enhancement

MAIN VISIBLE CAMERA

Detector Type
N/A

Lines of Resolution
N/A

Minimum Illumination
N/A

Optical Zoom
N/A

E-Zoom
N/A

SYSTEM SPECIFICATIONS

Video Tracking
No

Firefighter Mode
No

Pan/Tilt Adjustment Range
360° Continuous Pan, +/-90° Tilt

Analog Video Output
30 Hz NTSC

Analog Video Connector Types
F-type BNC with BNC-to-RCA adapter included for video out

Network Video Output
No

HD-SDI Lossless Video Output
No

Power Requirements
12-24 V DC

Power Consumption
25 W nominal; 50 W max

ENVIRONMENTAL

Operating Temperature Range
-13°F to +131°F (-25°C to +55°C)

Storage Temperature Range
-40°F to +185°F (-40°C to +85°C)

Automatic Window Defrost
Standard at Power-Up

Sand/Dust Ingress
Mil-Std-810E

Water Ingress
IPX 6 (heavy seas, powerful jets of water)

Shock
15g vertical, 9g horizontal

Vibration
IEC 60945; MIL-STD-810E

Lightning Protection
Standard

Salt Mist
IEC60945

Wind
100 knot (115.2 mph)

EMI
IEC 60945

PHYSICAL

Weight
~ 9 lbs (4 kg)

Size
7" (177.8 mm) dia. 11.2" (284.4 mm) ht.

RANGE PERFORMANCE

Person in the Water
1,500ft (457m)

Small Vessel
4,200ft (1,280m)

What's in the Box:

• 324S Thermal Camera

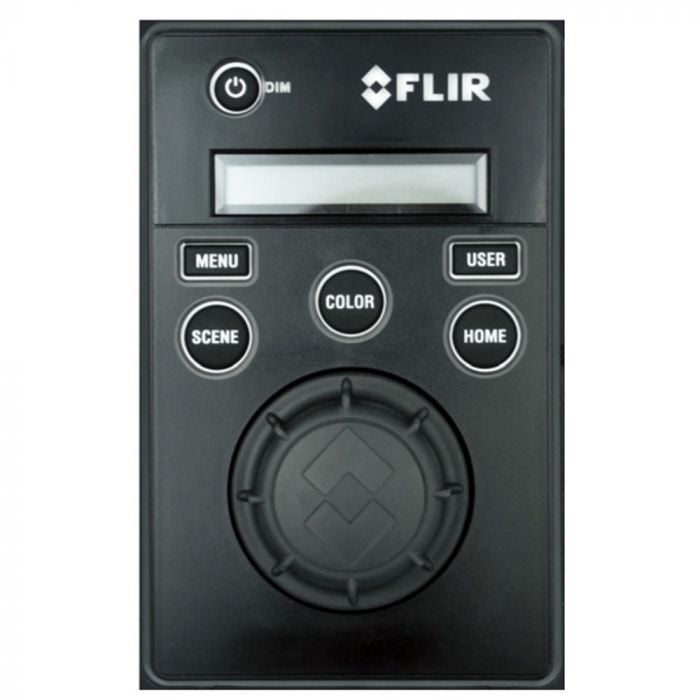

• JCU with weather cover


• Weather proof Ethernet coupler


• 25' Ethernet cable


• Mounting hardware


• Users guide
