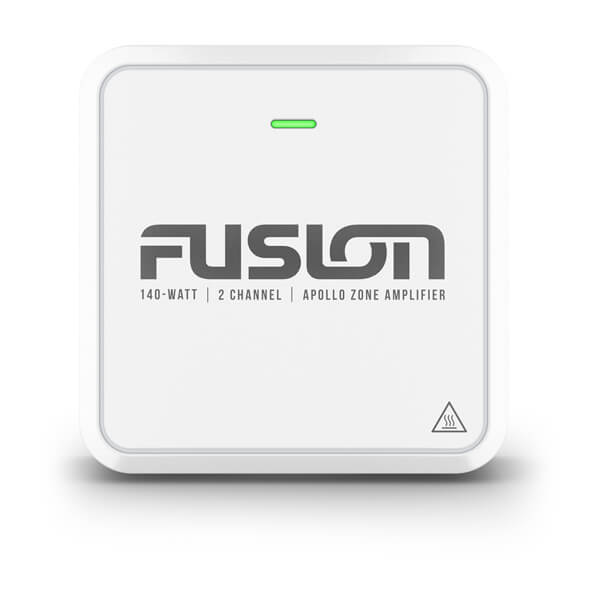

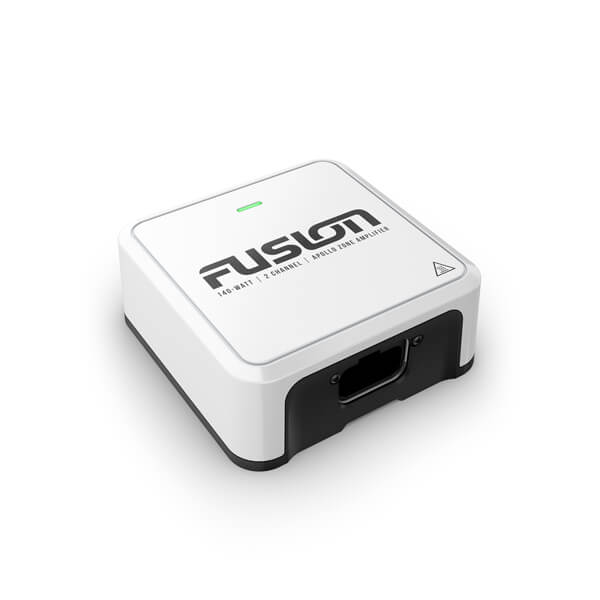

Fusion Apollo AP-DA214 Zone Amplifier 2 Channel 140 Watt

Fusion Apollo AP-DA214 Zone Amplifier 2 Channel 140 Watt

Regular price $199.99 USD
Regular price $199.99 USD Sale price $199.99 USD
Sale Sold out
Shipping calculated at checkout.

Fusion Apollo AP-DA214 Zone Amplifier 2 Channel 140 Watt

Fusion® Apollo AP-DA214 Marine Amplifiers, Zone Marine Amplifier

Model: 010-02569-00

The amplifier’s circuit board has been specially coated to provide extra protection from the marine elements.

Identify electrical issues at a glance. These indicator lights will show you issues with electrical currents and shorts as well as temperature.

Easily install the amplifiers on board with the included mounting brackets.

The amplifiers are designed to last season after season. They have been tested to a high level of protection against salt fog, temperature, vibration and UV.

The compact zone amplifier provides audio zone expansion for high-quality sound in more areas on your boat. It’s compatible with 12- and 24-volt electrical systems.

Note: Fusion DSP-enabled marine stereo (Apollo RA770, Apollo RA670, Apollo WB670, MS-RA210) and Fusion speakers/subwoofers required.

Specifications

Physical dimensions without bracket (LxWxH)
3.94" x 3.94" x 1.57" (100 x 100 x 40 mm)

Physical dimensions with bracket (LxWxH)
3.94" x 4.53" x 1.89" (100 x 115 x 48 mm)

Weight
1.01 lb (460 g)

Water Rating
IPX7

Amplifier class
Class-D

CEA-2006 power rating
20 watt RMS x 2 @ 14.4 V input - 4 ohm < 1% THD

Total rated power output - 2 ohm (watts)
30 watt RMS x 2 @ 14.4 V input - 2 ohm < 1% THD

Total rated power output - 4 ohm Bridged (watts)
NA

Peak power (watts)
140 watts

Input sensitivity
0.45 V RMS

Input impedance
9k Ohm

Operating voltage
10.8 V - 32 V DC

Current consumption (StandBy)
< 1 mA @ 14.4 V input

Current consumption (Idle)
< 0.04 A @ 14.4 V input

Current consumption (Max)
10 A

Fuse rating
16 A electronic fuse (no replacement necessary)

Ignition Safety Protected (SAE J1171)
Yes

Protection circuits
Reverse voltage
Input under/over voltage
Over temperature
Output short circuit

Operating temperature range
32° to 122° F (0° to 50° C)


What's in the Box:


  • One Apollo zone amplifier

  • One mounting bracket

  • Three 6-guage, self-tapping screws

  • Wiring loom

  • Installation instructions

  • Important safety and product information (ISPI)
