Fusion Apollo MS-WB675 SiriusXM Bundle

Fusion Apollo MS-WB675 SiriusXM Bundle

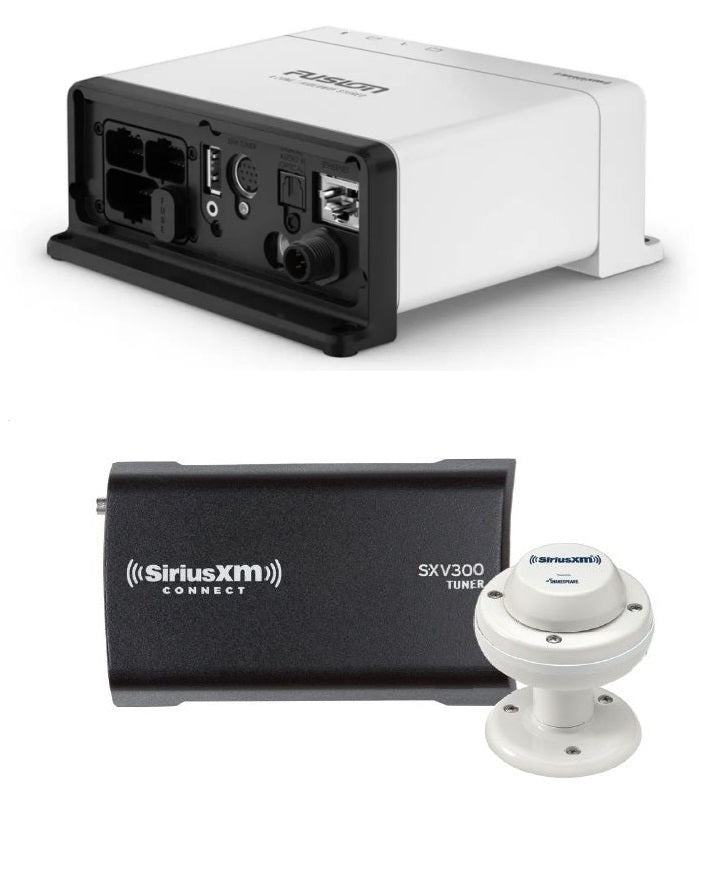

Fusion Apollo MS-WB675 Marine Hideaway Stereo SiriusXM Bundle

Model: 010-02346-50/SXM

• Compact hideaway design means you don’t sacrifice valuable dash space


• Separately control and customize up to four audio zones with Multi-Zone™ Technology


• Integrated audio control with your Fusion wired remotes and compatible Garmin MFDs or smartwatches


• Connect via Ethernet to your wireless network router, Garmin MFD or Apollo™ Series stereo network to enjoy audio streaming and over-the-air updates via Wi-Fi® technology


• Stream premium quality audio from your favorite music apps via AirPlay® 2 software1 from Apple®

Amplify the moment, and maximize dash space with the Fusion Apollo WB675 marine hideaway stereo. This compact marine stereo offers Multi-Zone™ Technology that controls up to four separate audio zones. While the Apollo WB675 stereo is small enough to fit most helm sizes or simply be tucked out of sight with its compact design, it still offers superior quality audio. Create custom audio profiles for each zone, and control the stereo with your Fusion wired remotes and compatible Garmin MFDs or smartwatches.

Specifications

General

Physical dimensions (HxWxD)
5.1" x 5.1" x 2.2" (130 x 130 x 56 mm)

Weight
16.75 oz (475 g)

Power input
10.8-16 VDC

Operating temperature range
32-122 degrees F (0-50 degrees C)

Current (max)
15 A

NMEA 2000® network LEN
1 (50 mA)

BLUETOOTH® technology wireless range
Up to 30' (10 m)

ANT® connectivity wireless range
Up to 10' (3 m)

Wireless frequencies/protocols
BLUETOOTH 2.4 GHz @ +12 dBm nominal
ANT 2.4 GHz @ +7 dBm nominal

Compass-safe distance
5.9" (150 mm)

Stereo Features

Built-in amplifier
Class-D (2 ohm stereo-stable)

Peak power
280 watts

Built-in amplifier
Class-D (2 ohm stereo-stable)

Rated power output (2 ohm)
43 watts RMS x 4 @ 14.4 V input < 10% THD

Rated power output (4 ohm)
26 watts RMS x 4 @ 14.4 V input < 10% THD

Built-in Digital Signal Processing
yes (with preconfigured DSP profiles)

PartyBus™-Network capabilities
yes (wired)

Fusion-Link™ control
yes (with MFD, smartphone and compatible Garmin watch)

Multi-Zone™ technology
4 zones

BLUETOOTH wireless technology
Yes

ANT wireless technology
Yes

SiriusXM® ready
Yes (requires SiriusXM Connect vehicle tuner)

DAB+ ready
Yes (requires DAB100A antenna module)

Optical audio input
Yes

NRX remote compatibility
Yes

Software updates
Over-the-air software updates via the Fusion-Link app*
USB

Warranty
3 years

Sources

Sources
AM / FM / BLUETOOTH / AirPlay® 2 from Apple®* / digital optical input / USB audio / iPhone® / iPod® / AUX x1

Connectivity

Auxiliary input
1

Optical audio input
1 digital SPDIF port

Ethernet
1

NMEA 2000
1

USB 2.0
1

SiriusXM satellite radio
1 (requires SiriusXM Connect vehicle tuner; does not support traffic and weather)

AM/FM radio
1 Motorola antenna connector port

Speaker
4 speaker connections (2 zone amplified)

RCA pre-out (left, right and subwoofer)
4 zones (requires external amplification)

Line out
4 (1 x L + R per zone; requires external amplification)

Subwoofer out
1 mono output (requires external amplification)

What's in the Box:

• Fusion MS-WB675 marine hideaway stereo


• Four 8-gauge, self-tapping screws


• Power and speaker wiring harnessd


• Auxiliary-in, line-out and subwoofer-out wiring harness


• Line-out and subwoofer-out wiring harness


• 6 ft (2 meter) NMEA 2000® drop cable


• Documentation


• SXV300


• SRA50
