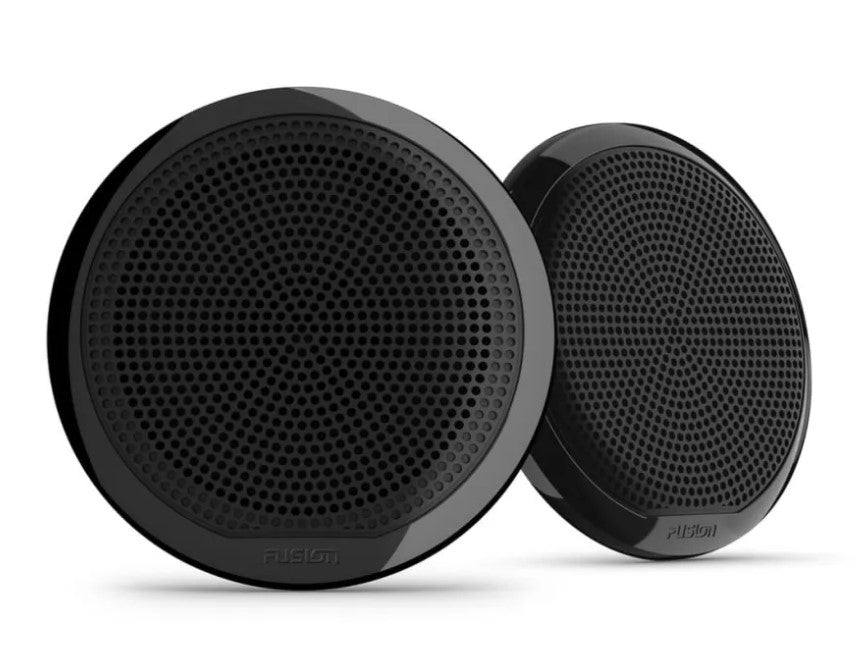

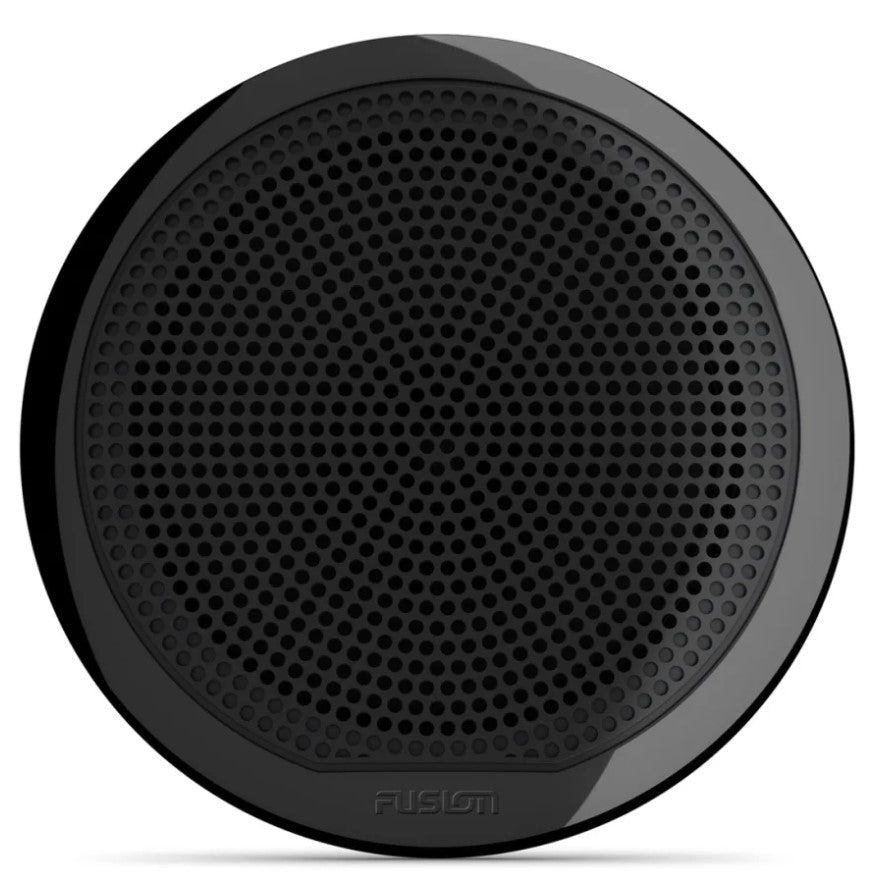

Fusion EL-F653B 6.5" Speakers Black 80 Watts

Fusion EL-F653B 6.5" Speakers Black 80 Watts

• The injection-molded polypropylene cone provides clean, clear audio reproduction.


• The shallow basket design provides increased versatility during installation.


• The speakers are available in a 6.5" design with both classic and sports style grilles.


• Salt fog resistant and UV stable design for the harsh marine environment.

The EL Series speakers have an IP65 rating for protection against dust and water ingress and have been tested to a high level of protection against salt fog and UV

Tested to international standards for pressure and water ingress, the EL Series speakers are designed and built for superior quality and robustness.

The EL Series speakers incorporate high-quality materials and marine-specific design elements, ensuring they look and sound great on the water.

By using a water-resistant IMPP cone it improves the robustness of the speaker, allowing for clean, clear audio reproduction.

The lightweight design allows for higher sensitivity, resulting in increased power and efficiency to deliver an enhanced audio experience

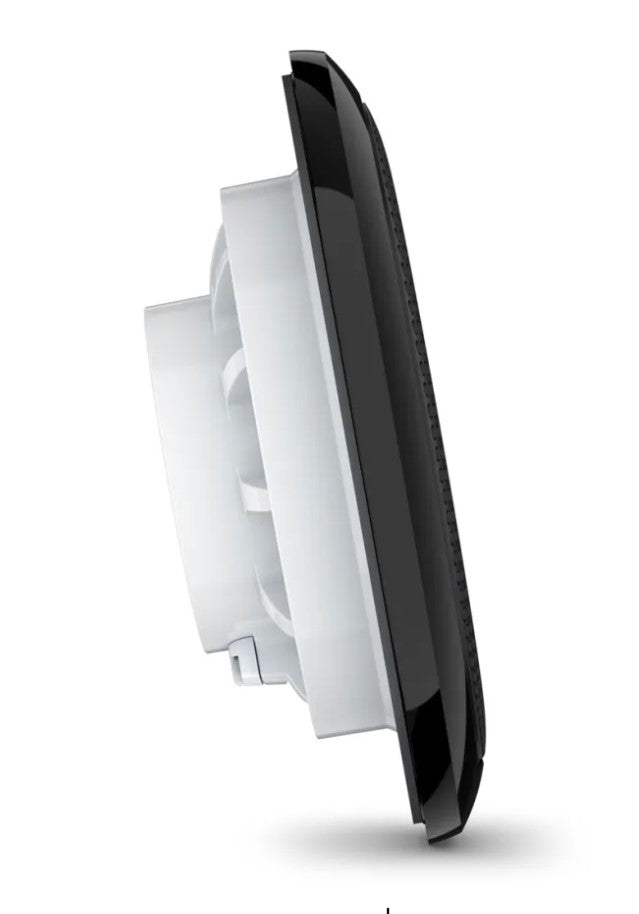

The optimized open back design allows for extended power handling and versatile mounting options with reduced mounting depth.

Water and dust rating
IP65

Configuration
Full range

Speaker size
6.5"

Peak power (Watts)
80 W

RMS power (Watts)
20 W

Sensitivity (1 W / 1 m)
88 dB

Frequency response
45 Hz-16 kHz

Nominal impedance
4 ohms

Recommended amplifier power (RMS)
20-40 W/Ch

Operating temperature range
32° to 122° F (0° to 50° C)

Voice coil diameter
0.79"

Cone material
Polypropylene cone with cloth surround

Compass-safe distance
100" (254 cm)

Weight
1.21 lbs (0.55 kg)

Warranty
1 year

Mounting Dimensions

Mounting diameter clearance
5.12" (130 mm)

Mounting depth clearance
1.69" (43 mm)

Dimensions
6.93" x 2.26" (176 x 57.5 mm)

What's in the Box:

• One pair of speakers


• 12 Phillips stainless steel mounting screws (4.2 mm x 25.4 mm (8 gauge x 1"))


• Two 20 ft (6 meter) speaker cables


• Documentation
