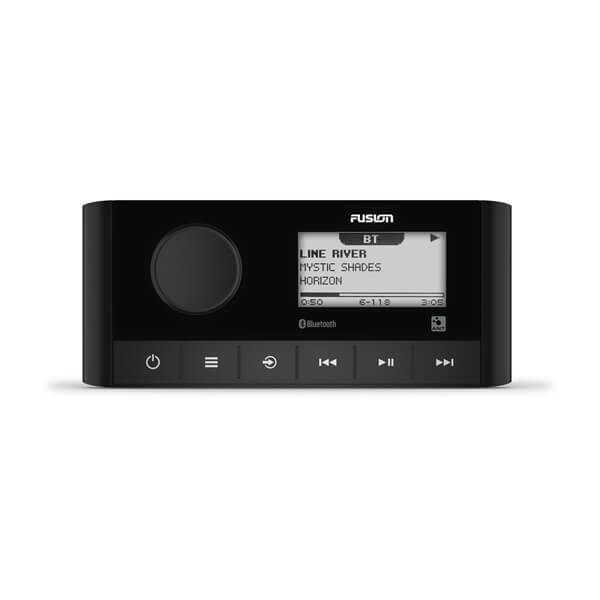

Fusion MS-RA60 Marine Stereo

Fusion MS-RA60 Marine Stereo

Model: 010-02405-00

• Bonded LCD improves durability and protection against condensation and fogging.


• Built-in Class-D amplifier delivers higher efficiency and greater output.


• Enjoy convenient over-the-air software updates via BLUETOOTH® technology from the Fusion-Link™ app1.


• Enjoy convenient over-the-air software updates via BLUETOOTH® technology from the Fusion-Link™ app1.


• Control your music from your compatible smart device or Garmin watch.

The MS-RA60 is the most economical marine stereo from Fusion yet, featuring modern aesthetics, Multi-Zone™ Technology in two zones and advanced connectivity options in a compact form factor.

Designed and engineered for the harsh marine environment, the MS-RA60 stereo has an IPX6- and IPX7-rated water-resistant front panel to perform and last on board.

Providing uniformity across the helm, the black front face blends seamlessly into black glass panels, complementing other electronics and MFDs for a tidy and elegant installation.

The MS-RA60 is designed to fit in the MS-RA55 mounting profile, eliminating the need to alter your existing cutout, reducing complexity when upgrading your stereo system.

Take advantage of the multiple source options available, including BLUETOOTH technology, DAB+ radio, AM/FM radio and AUX connection.

The built-in DAB tuner supports the latest DAB and DAB+ broadcasts, allowing you to enjoy high-quality digital radio streaming wherever DAB and DAB+ are supported.

Specifications

General

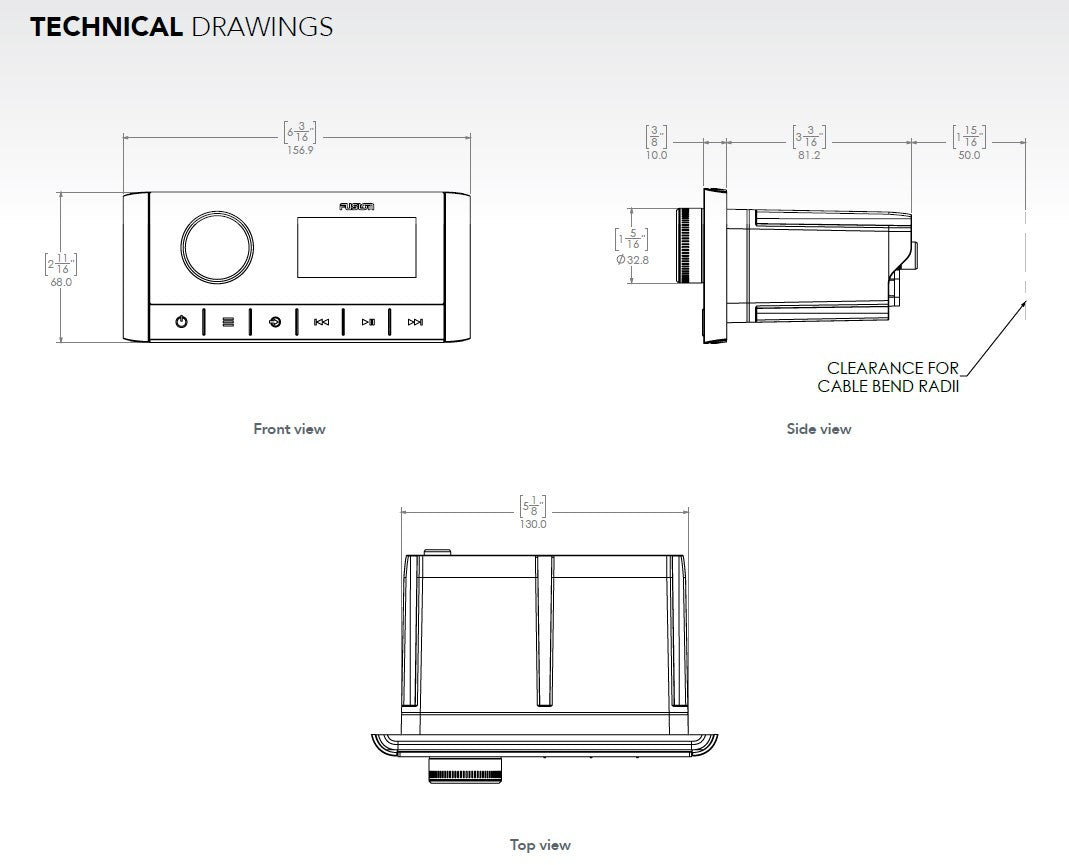

Physical dimensions (H x W x D)
2.68" x 6.18" x 4.06" (68 x 156.9 x 103.2 mm)

Weight
11.1 oz (316 g)

Water rating
IPX6 and IPX7 (front panel only, when properly installed)

Power input
10.8-16 VDC

Operating temperature range
32° to 122° F (0° to 50° C)

Current (max.)
15 A

BLUETOOTH wireless range
BLUETOOTH wireless range

ANT wireless range
Up to 10 ft (3 m)

Wireless frequencies/protocols
Bluetooth 2.4 GHz @ +12 dBm nominal

Compass-safe distance
5.9" (150 mm)

Stereo Features

Display
2.3" perimeter bonded monochrome dot matrix LCD

Built-in amplifier
Class-D (minimum 4 ohm impedance)

Peak power
180 W

Rated power output (4 ohm)
22 W rms x 4 @ 14.4 V input, 4 ohm, 10% THD

Fusion-Link™ control
yes (with compatible Apple and Android devices)

Fusion-Link Lite control
yes (with compatible Garmin watch)

Multi-Zone™ technology
2 zones

BLUETOOTH wireless technology
yes

ANT wireless technology
yes

DAB+
yes (DAB tuner built in)

Multi-language interface
Dutch/English/French/German/Italian/Spanish

Software updates
Over-the-air software updates via BLUETOOTH wireless technology using the Fusion-Link app

Warranty
1 year

Sources

Sources
AM/FM/BLUETOOTH/AUX x1/DAB+ (available in Europe and Australia only)

Connectivity

Auxiliary input
One RCA input (AUX)

AM/FM radio
One Motorola antenna connector port

Speaker
4 x speaker connections (2 amplified zones)

4 x speaker connections (2 amplified zones)
1 zone (requires external amplification)

Line out
Zone 1: L + R (requires external amplification)

Subwoofer out
Zone 1 (requires external amplification)

What's in the Box:

• Fusion MS-RA60 marine stereo


• Mounting gasket


• Four 6-gauge, self-tapping screws


• Two screw covers


• Power and speaker wiring harness


• Auxiliary-in, line-out, and subwoofer-out wiring harnesses


• Documentation
