Fusion SG-F653SPG 6.5 Speaker Signature Series 3i 230 Watts Sport Grille Gray

Fusion SG-F653SPG 6.5 Speaker Signature Series 3i 230 Watts Sport Grille Gray

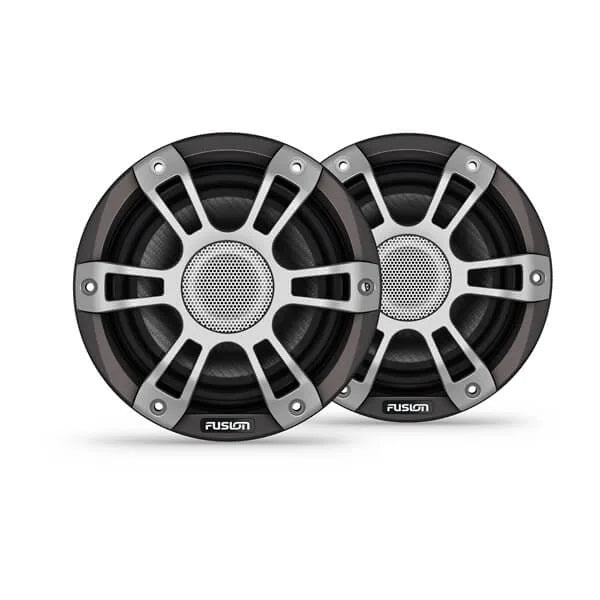

Fusion Signature Series 3i Marine 6.5" 230-watt Coaxial Sports Gray Marine Speakers (Pair)

Model: 010-02771-21

• Crystal-clear premium sound quality is suited for the marine environment.


• Water-resistant connectors provide simplified installation and superior protection.


• The rigorously tested marinized design has an IP65 rating.


• Built to last season after season, the Signature Series 3i coaxial speakers include a supported 3-year warranty.

Bring on the elements. The Signature Series 3i coaxial speakers deliver crystal-clear audio and withstand the conditions like never before.

New, water-resistant connectors now come standard. This makes installation easy and provides superior protection from the harsh marine environment.

Material enhancements and protective engineering maintain the sharp aesthetic appeal of your speakers, year after year.

Any product that bears the Fusion True-Marine seal of assurance has been designed by Fusion to withstand the harshest marine environments season after season and comes with an industry-leading 3-year warranty.

A lighter and stronger woven fiber composite produces greater sound definition at a higher volume.

These speakers are designed to work optimally with Fusion® stereo systems and amplifiers (sold separately) with custom DSP profiles. This requires the Fusion-Link™ smart-device app for setup.

Specifications

General

Physical dimensions (Diameter x Depth)
7.87" x 4.06" (200 x 103 mm)

Weight
6.5" sports speaker: 2.8 lbs (1.29 kg)

Water and dust rating
IP65

Configuration
Coaxial

Peak power (watts)
230 watts

RMS power rating (watts)
75 watts

Sensitivity (1 watt @ 1 meter)
90 dB

Frequency response
70 Hz—22 kHz

Nominal impedance
4 ohm

Recommended amplifier power (watts RMS)
30—90 watts/channel

LED lighting
NA

LED supply voltage
NA

LED load current @14.4 VDC (max)
NA

Operating temperature range
32—122 degrees F (0—50 degrees C)

Voice coil diameter
1.2"

Cone material
CURV® Cone Technology with rubber surround

Tweeter type
Silk dome

Compass-safe distance
122" (310 cm)

Speaker connection
Flying lead with water-resistant 2-way connector, 5.9" (150 mm)

LED connection (sports style with LED models only)
NA

Warranty
3 years

Mounting Dimensions

Mounting diameter clearance
5.35" (136 mm)

Mounting depth clearance
3.11" (79 mm)

Optimum Enclosure Recommendations

Sealed enclosure volume (fully filled with absorption material)
0.64 cubic ft (18 L)

Ported (vented) enclosure volume (lined with absorption material)
0.88 cubic ft (25 L)

Port diameter
3" (76 mm)

Port length
6.4" (162 mm)

What's in the Box:

• 6.5" 230-watt Coaxial Sports Gray Marine Speakers (Pair)


• 12 Phillips stainless steel mounting screws, 4.2 mm x 40 mm (8 gauge x 1.6")


• 2 water-resistant cable assemblies with 2-pin connector (5.9" (150mm))


• Documentation
