Fusion SG-FL773SPW 7.7 Speaker Signature Series 3i 280 Watts Sport Grille White

Fusion SG-FL773SPW 7.7 Speaker Signature Series 3i 280 Watts Sport Grille White

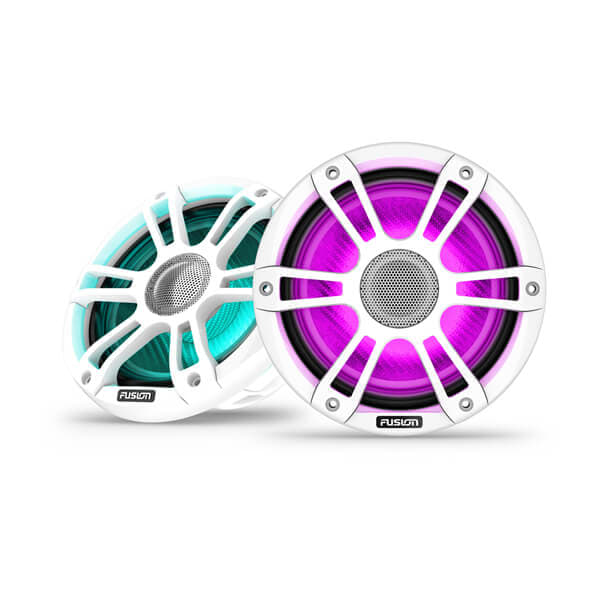

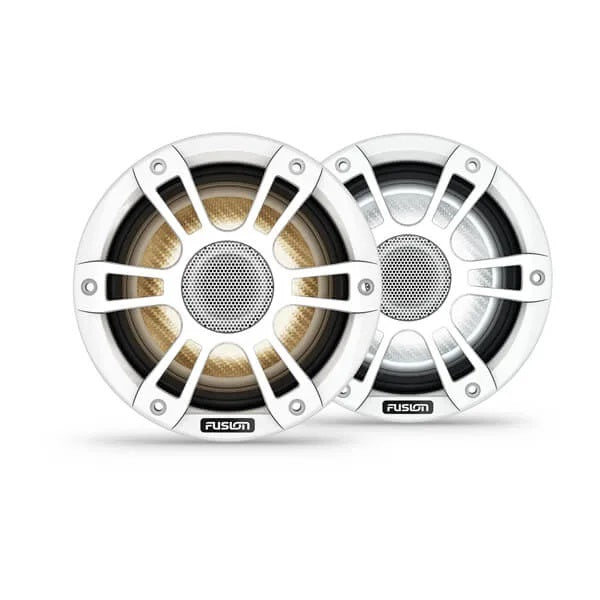

Fusion Signature Series 3i Marine 7.7" 280-watt CRGBW Coaxial Sports White Marine Speakers (Pair)

Model: 010-02772-10

• Crystal-clear premium sound quality is suited for the marine environment.


• Water-resistant connectors provide simplified installation and superior protection.


• The rigorously tested marinized design has an IP65 rating.


• Built to last season after season, the Signature Series 3i coaxial speakers include a supported 3-year warranty.


• CRGBW LED lights set the scene on your boat.

Bring on the elements. The Signature Series 3i coaxial speakers deliver crystal-clear audio and withstand the conditions like never before.

New, water-resistant connectors now come standard. This makes installation easy and provides superior protection from the harsh marine environment.

Material enhancements and protective engineering maintain the sharp aesthetic appeal of your speakers, year after year.

Any product that bears the Fusion True-Marine seal of assurance has been designed by Fusion to withstand the harshest marine environments season after season and comes with an industry-leading 3-year warranty.

A lighter and stronger woven fiber composite produces greater sound definition at a higher volume.

These speakers are designed to work optimally with Fusion® stereo systems and amplifiers (sold separately) with custom DSP profiles. This requires the Fusion-Link™ smart-device app for setup.

Cool white, red, green, blue, warm white. You can choose a color to match the mood of your music.

Specifications

General

Physical dimensions (Diameter x Depth)
7.72" x 4.37" (196 x 111 mm)

Weight
3.9 lbs (1.77 kg)

Water and dust rating
IP65

Configuration
Coaxial

Peak power (watts)
280 watts

RMS power rating (watts)
100 watts

Sensitivity (1 watt @ 1 meter)
91 dB

Frequency response
60 Hz—22 kHz

Nominal impedance
4 ohm

Recommended amplifier power (watts RMS)
25—120 watts/channel

LED lighting
yes, CRGBW (sports style with LED models only)

LED supply voltage
10.8—16 VDC (sports style with LED models only)

LED load current @14.4 VDC (max)
300 mA (sports style with LED models only)

Operating temperature range
32—122 degrees F (0—50 degrees C)

Voice coil diameter
1.4"

Cone material
CURV® Cone Technology with rubber surround

Tweeter type
Silk dome

Compass-safe distance
141" (358 cm)

Speaker connection
Flying lead with water-resistant 2-way connector, 5.9" (150 mm)

LED connection (sports style with LED models only)
Flying lead with water-resistant 6-way connector, 5.9" (150 mm)

Warranty
3 years

Mounting Dimensions

Mounting diameter clearance
6.14" (156 mm)

Mounting depth clearance
3.39" (86 mm)

Optimum Enclosure Recommendations

Sealed enclosure volume (fully filled with absorption material)
0.71 cubic ft (18 L)

Ported (vented) enclosure volume (lined with absorption material)
0.1.06 cubic ft (25 L)

Port diameter
3" (76 mm)

Port length
6.4" (162 mm)

What's in the Box:

• 7.7" 280-watt CRGBW Coaxial Sports White Marine Speakers (Pair)


• 12 Phillips stainless steel mounting screws, 4.2 mm x 40 mm (8 gauge x 1.6")


• 2 water-resistant cable assemblies with 2-pin connector (5.9" (150mm))


• 2 water-resistant cable assemblies with 6-pin connector (5.9" (150mm), sports style with LED models only)


• Documentation
