Fusion XS-S10SPGW Sub-Woofer Sports Grill Grey/White

Fusion XS-S10SPGW Sub-Woofer Sports Grill Grey/White

Fusion XS-S10SPGW 10" Sub-Woofer WITH Sport Grille

• Create a 2.1 audio zone to reduce system cost and simplify installation.


• Enjoy high-resolution bass reproduction from the quality polypropylene cone.


• With an increase in real power, the voice coil provides a high-quality sound experience.


• Engineered to last season after season, the subwoofers include a 3-year warranty.

Built on the True-Marine design philosophy from Fusion, the XS Series subwoofers have achieved an IP65 rating for protection against dust and water ingress and have been tested to a high level of protection against salt fog, temperature, vibration and UV.

Tested to international standards for pressure and water ingress, the XS Series subwoofers are designed and built for superior quality and robustness.

Built for system versatility and ease of integration, you can connect your XS Series subwoofer directly to a 2.1 audio zone compatible system, such as the Apollo™ Series, without the need for an external amplifier. This helps to reduce system cost and simplifies installation.

By using a translucent cone, we can incorporate consistent multicolor illumination1. It also produces defined, high-resolution low frequencies from the excellent self-damping and bass reproduction.

With an increase in real power and efficiency, the large-diameter voice coil delivers a truly high-quality sound experience.

The basket is constructed using high-quality engineered plastics to deliver enhanced durability when exposed to the marine environment.

The XS Series sports-style subwoofer is available in a 10" size with interchangeable sports white/sports gray grilles for an attractive modern finish.

Physical dimensions
10.79" x 5.79" (274 x 147 mm)

Water and dust rating
IP65

Speaker size
10"

Peak power (Watts)
600 W

RMS power (Watts)
120 W

Sensitivity (1 W / 1 m)
87 dB

Magnetic structure
41 oz

Frequency response
30 Hz - 2 kHz

Nominal impedance
4 ohms

Recommended amplifier power (RMS)
40 - 300 W

Operating temperature range
32° to 122° F (0° to 50° C)

Voice coil diameter
1.5"

Cone material
Polypropylene cone with rubber surround

Compass-safe distance
146" (370 cm)

Warranty
3 years

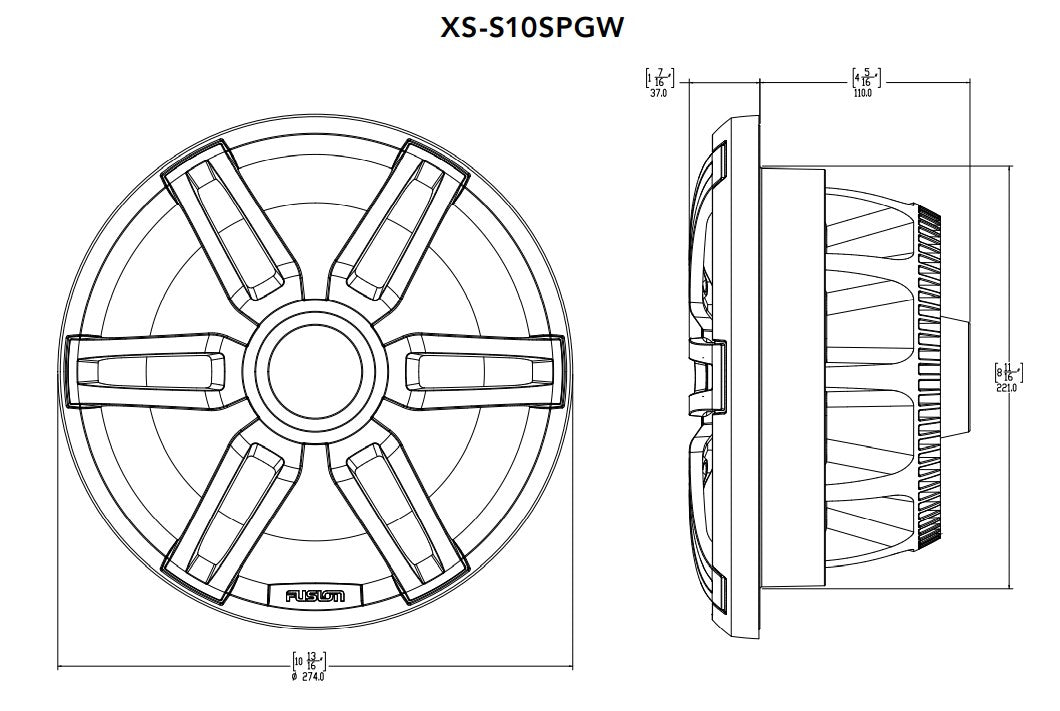

Mounting Dimensions

Mounting diameter clearance
8.78" (223 mm)

Mounting depth clearance
4.45" (113 mm)

What's in the Box:

• XS-S10SPGW subwoofer


• 6 Phillips stainless steel mounting screws (4.8 mm x 50 mm (10 gauge x 2"))


• Speaker grilles (1 sports gray/1 sports white)


• Documentation
