Garmin GNA10 Jog Lever Adapter

Garmin GNA10 Jog Lever Adapter

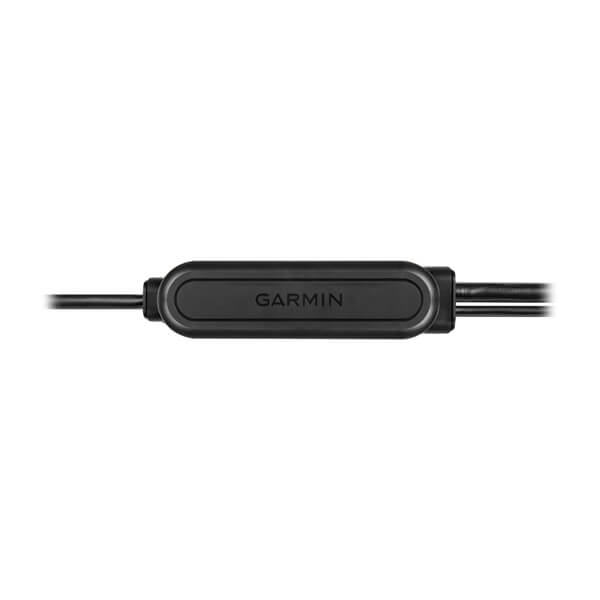

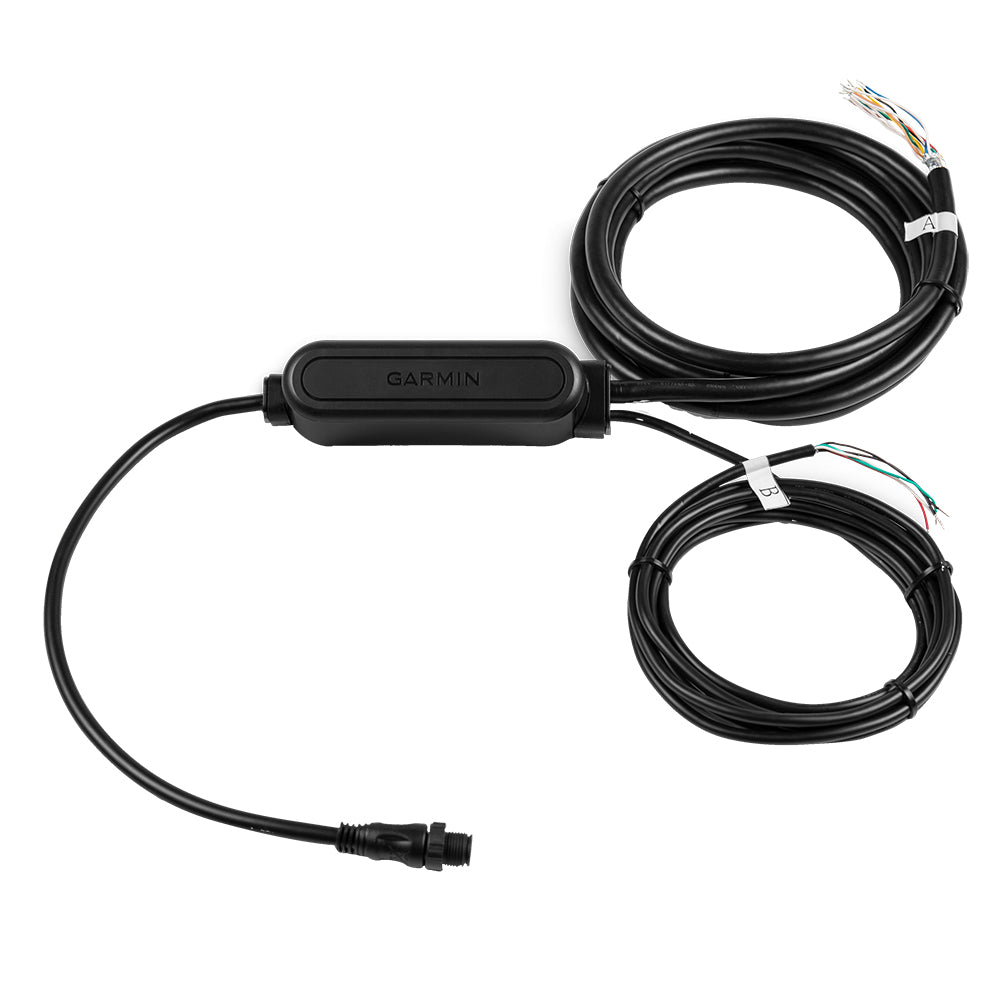

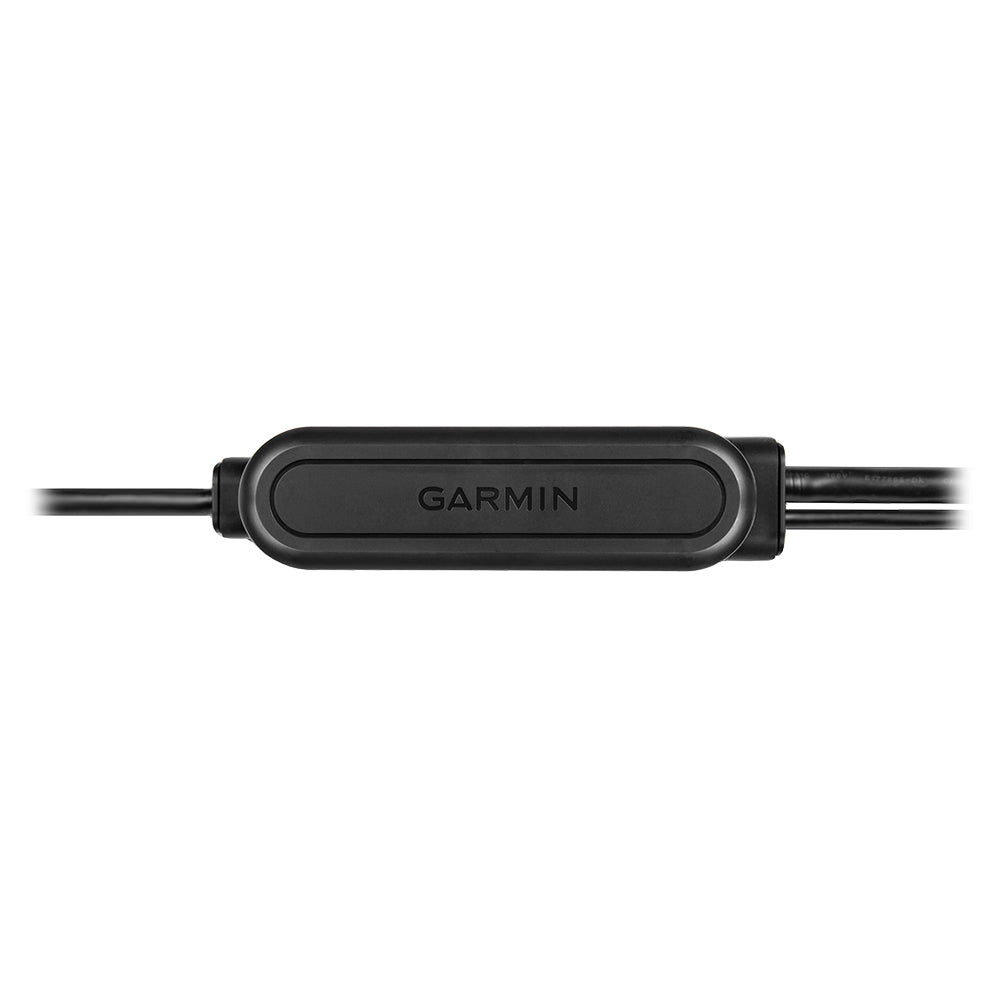

Use the Garmin GNA 10 to connect a jog lever to our Reactor 40 autopilots* on displacement hull boats. A jog lever is a rugged and simple steering control for work boats or trawlers. Adjust heading hold with the jog lever by pressing it right or left, or put the autopilot into the new Power Steering mode to move the rudder without autopilot guidance. The GNA 10 can also optionally connect to a button and LED light to allow switching between heading hold and standby**. Garmin does not supply the jog lever, button or LED light.

* The GNA 10 requires both a compatible Garmin autopilot and Garmin display

** The GNA 10 can also be used to interface a Reactor 40 autopilot with Jastram digital steering controls

The GNA 10 with jog lever is designed only for use on displacement hull power boats. It is not compatible with planing hull boats or sailboats.

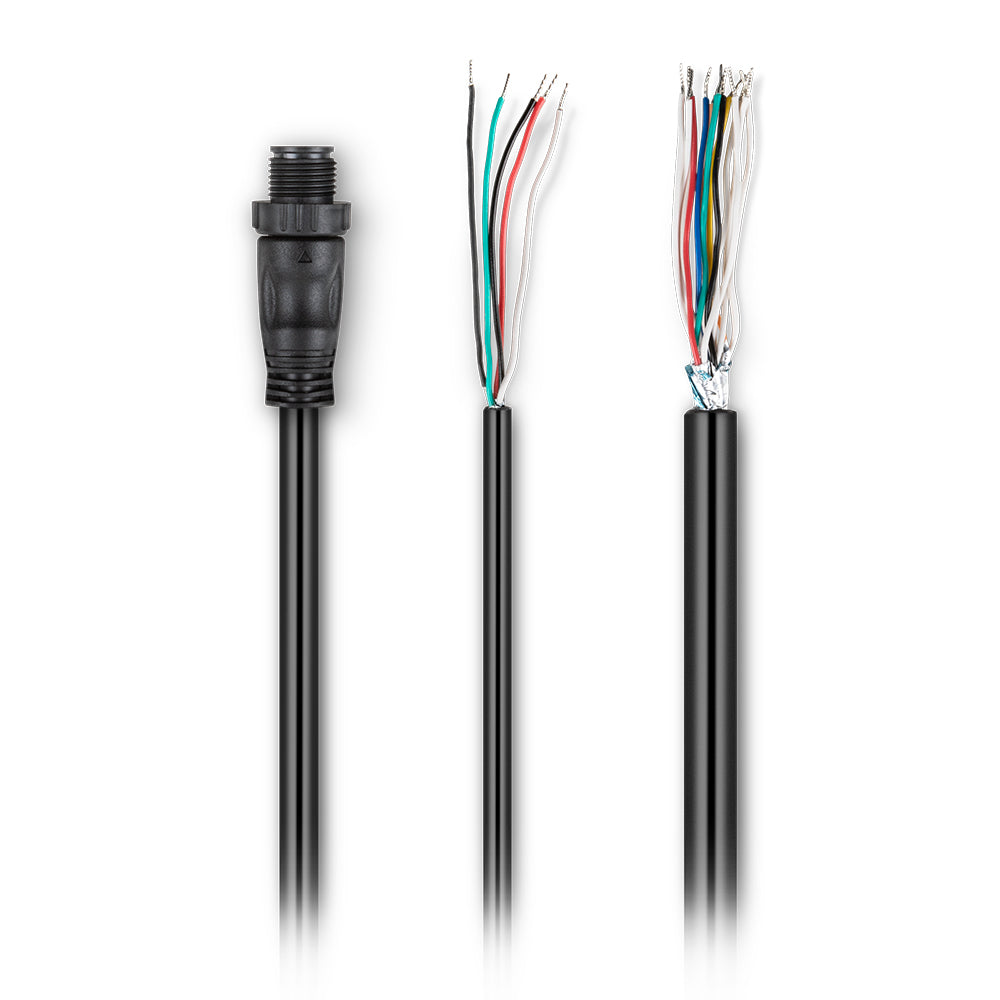

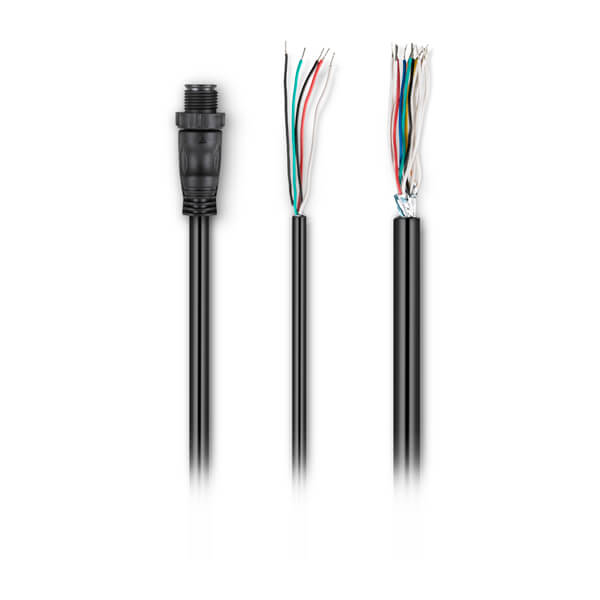

Cable length
2.8 meters

Water rating
IPX7

NMEA output
NMEA 2000

NMEA 2000® LEN (Load Equivalency Number)
5 (250mA @ 9VDC)

Operating temperature
-20C to 75C

Supply voltage
Powered by NMEA 2000 bus, 9-32V

Supported Jog Levers
Kobelt 7170

Supported Button Types
DPST OFF-MOM (no diode needed for installation) or

Supported LED Types
LED lights with current draw of 20mA or less
