Icom M510 Plus AIS VHF Bundle with CT-M500

Icom M510 Plus AIS VHF Bundle with CT-M500

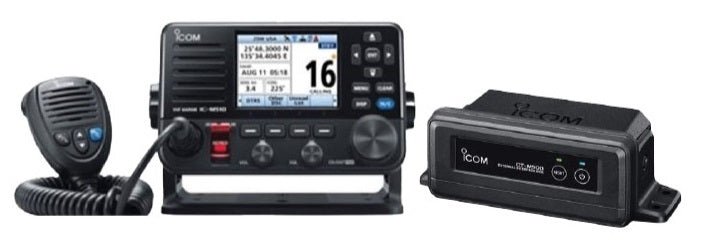

Icom M510 PLUS AIS VHF Radio with CT-M500

Model: M510 PLUS 21 USA Ct-M500 Bundle

• Active Noise Canceling


• NMEA 0183/HS connectivity


• Integrated GNSS receiver (Selectable from either internal receiver or use UX-241 GNSS antenna)


• IP68 advanced waterproofing (1 m depth of water for 60 minutes)


• Automatic Foghorn function (CT-M500 required)


• Voice Scrambler with optional UT-112A


• AquaQuake™ prevents audio degradation from a water-logged speaker

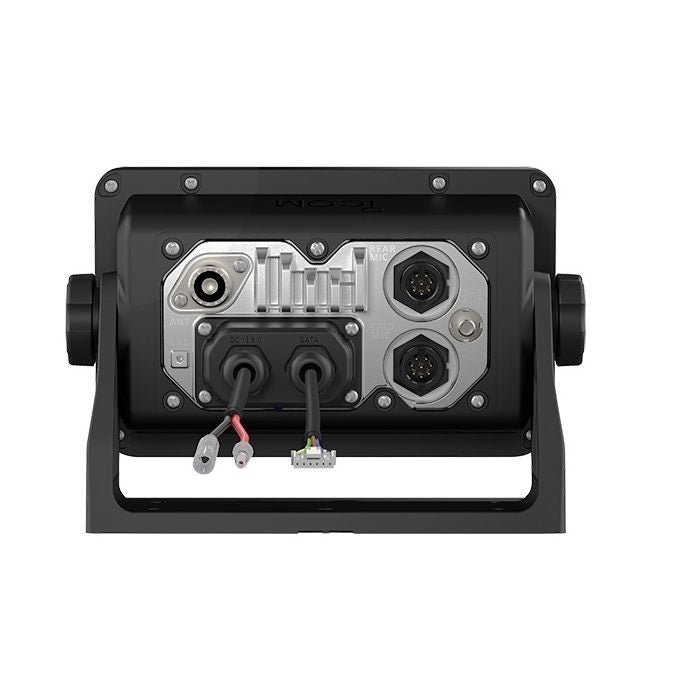

• Supplied speaker-microphone, HM-205RB can be connected to the rear panel


• External speaker connection


• Controlled with COMMANDMIC™ HM-195GB/GW


• Supports 4-digit channels

Icom’s new Class D DSC fixed mount VHF marine transceiver, the M510 is a tech-laden powerhouse. The M510 is nearly half the depth of the M506, allowing installation in more confined spaces. The large color display has a simple user interface allowing casual and serious boaters alike with plenty of options to communicate. Additionally, command and control using iOS® and Android™ smart devices with class leading features such as wireless calling.

The M510 includes a full color 3.5" TFT LCD screen with a near 180-degree viewing angles. The standard marine user interface is enhanced with animated functions and night mode for optimal viewing in the dark.

The RS-M500 app allows you to connect three iOS® or Android™ smart devices to function as a wireless command speaker/microphone. Use the push-to-talk features, scroll/scan channels, as well as use the M510’s intercom function from the comfort of the captain’s seat. Additionally, one COMMANDMIC™ can connect while 3 other smart devices are linked.

Connect to NMEA 2000 with the optional CT-M500 wireless interface box. If the NMEA connection is on a different part of the boat, the CT-M500 can wirelessly connect with the M510, providing flexibility on placement. Additionally, with the optional SP-37 horn speaker, the CT-M500 can access the two-way hailer/PA functions.

With its integrated AIS receiver or external NMEA sentence (third party AIS receiver, transponder), the IC-M510 can show real-time AIS vessel traffic information on the display. You can directly make an individual DSC call to selected AIS targets from the AIS screen.

Specifications

General

Usable channels
USA, INT, CAN, WX channels

Type of emission
16K0G3E (FM), 16K0G2B (DSC), 16K0GXW (AIS)*

Power supply requirement
13.8V DC (11.7—15.9V DC)

Current drain TX (25W output)
5.0A

Current drain RX (Max. Audio)
3.3A

Operating temperature range
—20°C to +60°C; —4°F to +140°F

Antenna impedance
50 Ohm

Transmitter

Output power (at 13.8V DC)
25W, 1W

Max. frequency deviation
+/- 5.0 kHz

Frequency tolerance
+/- 0.5 kHz

Spurious emissions
Less than -70 dBc (at 25W)

Residual modulation
More than 40 dB

More than 40 dB
More than 70 dB

Receiver

Sensitivity (at 12dB SINAD) DSC (1% BER)
0.32 µV typical 0.89 µV emf typical

Adjacent channel selectivity DSC (1% BER)
More than 75 dB More than 73 dBµ emf

Spurious response DSC (1% BER)
More than 75 dB More than 73 dBµ emf

Intermodulation DSC (1% BER)
More than 75 dB More than 68 dBµ emf

Hum and noise
More than 40 dB

Audio output power at 10% distortion
More than 15W with a 4? external speaker

Wireless LAN

Wireless LAN standard
IEEE 802.11 b/g/n

Authentication and Encryption
WEP (64/128 bit), WPA-PSK (TKIP), WPA2-PSK (AES)

Channels
1 to 13 (2.4 GHz band)**

Output power
Less than 10 mW/MHz

What's in the Box:

• M510 PLUS AIS VHF


• Speaker microphone, HM-205RB


• Microphone hanger


• DC Power Cable


• Mounting Bracket Kit


• CT-M500 NMEA2000 Interface
