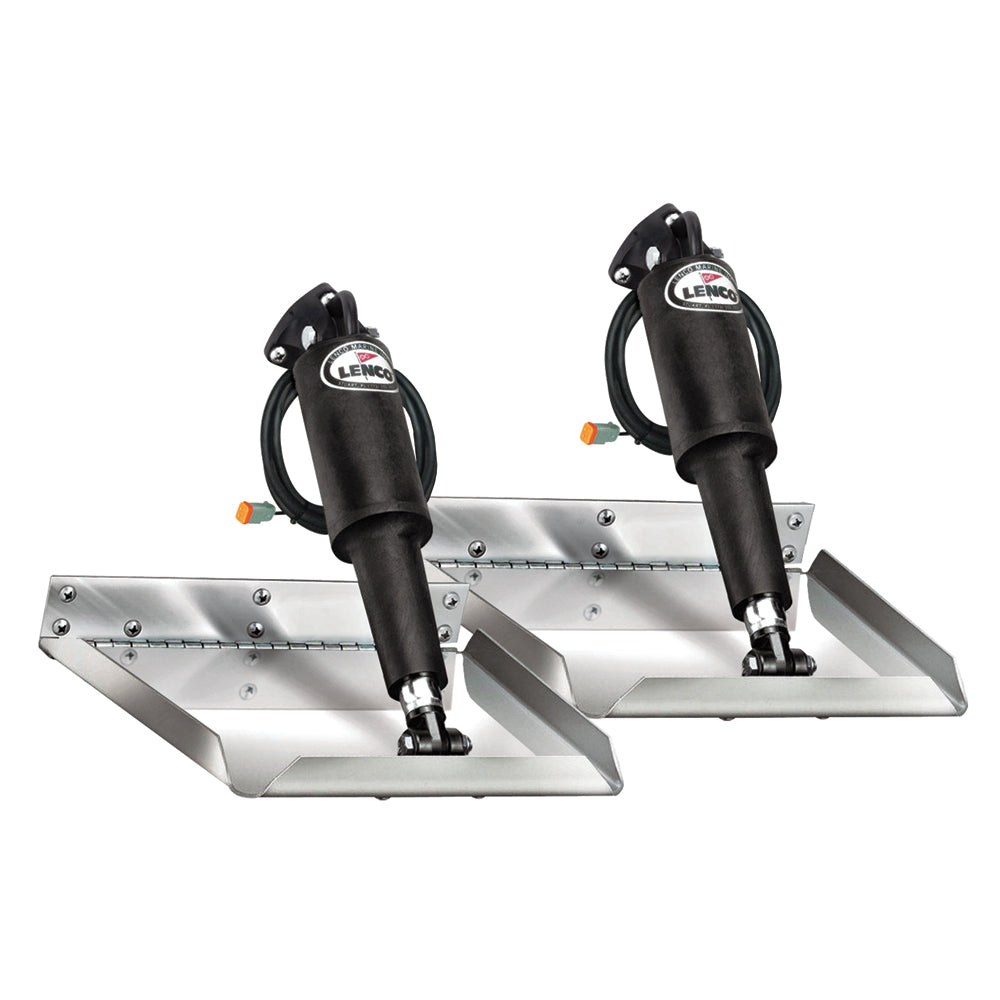

Lenco 12"x12" Edge Mount Trim Tab Kit 12v Electro Polished

Lenco 12"x12" Edge Mount Trim Tab Kit 12v Electro Polished

All the same features of the Edge Mount series with the addition of Electro-Polished blades. Electro-Polish adds a mirror finish and the ultimate corrosion protection. Actuator mounts at the trailing edge of these 12" (30.5 cm) blades giving them a 3" (7.6 cm) lower mounting height. Boat Lengths 14’ (4.3 m) to 30’ (9.1 m). Blades are constructed of Electro-Polished 12 gauge (2.7 mm) laser cut 304 stainless steel with a 1" (2.5 cm) turned up edges and a 5 degree taper on both sides to the trailing edge & 1/8" (3.2 mm) diameter hinge pin. Upper and lower high impact corrosion proof mounting brackets with mechanical cable gland seal.

L" X W"
12" X 12"

Boat Length
17’ — 30’ (4.27m — 5.49m)

Hinge Height
2" (5.1 cm)

Min Transom Height
11" (27.9 cm)

What's in the Box:

• (2) 12-gauge stainless steel Electro-Polished blades


• (2) 15054-001 actuators with 6' (1.8 m) leads and Deutsch connectors


• (2) 30133-103 actuator extension wiring harnesses - 20’ (6.1 m) length


• (2) 15085-001 upper mounting brackets with gland seal


• (2) 50014-001 lower mounting brackets


• Lenco owner’s/installation manual


• Stainless steel mounting hardware
