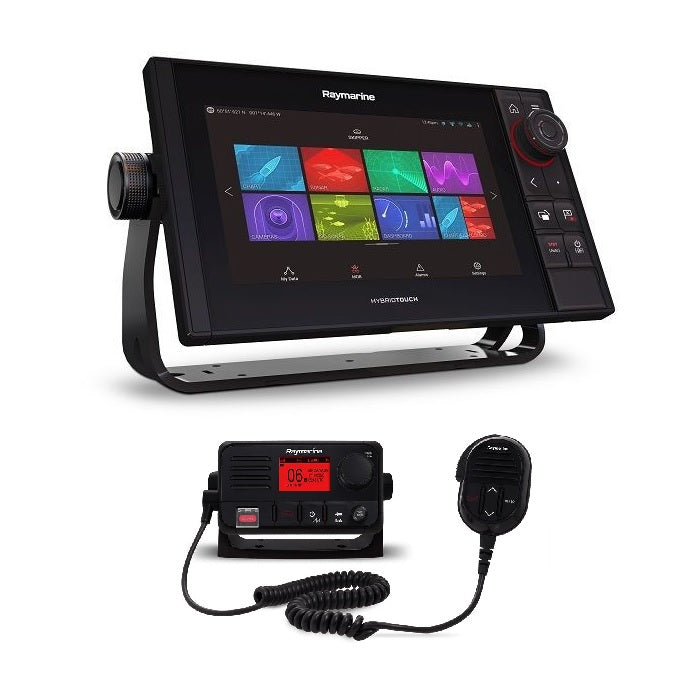

Raymarine Axiom Pro 9RVX MFD No Transducer LNC3 Chart RAY53 Bundle

Raymarine Axiom Pro 9RVX MFD No Transducer LNC3 Chart RAY53 Bundle

Raymarine Axiom Pro 9RVX 9" MFD With RealVision 3D and 1kW CHIRP, Lighthouse NC3 North America Lakes and Coastal Tide Stations RAY53 Bundle

Model: E70371-00-102 Ray53

• RealVision 3D


• True 1kW Sonar


• Sonar Scroll Back


• HybridTouch™


• Quad Core Processor


• Optical Bonding Technology & IPS Displays


• IP & Analog Video


• Clear Cruise™


• Quantum CHIRP, HD & SHD


• NMEA2000 & NMEA0183

Specifications

Display Size
9" IPS Optically Bonded LCD

Display Resolution
1280 x 720 WXGA

Display Type
Multitouch

Brightness
1,200 nits

Viewing Angle
Degrees: 88 / 88 / 88 / 88 (Top / Bottom / Left / Right)

Mounting
Top, Front, Bracket

Waterproof Rating
IPX6 / IPX7

Operating Temp
minus 13deg F to 131deg F (-25deg C to +55deg C)

Storage Temp
minus 22deg F to 158deg F (-30deg C to +70deg C)

Sensors

Sonar Type - Built-in
RealVision 3D & 1kW CHIRP Sonar built in

Sonar Connections
25pin connector used only with CPT-S transducers, Pro S can only be used with CPT-S transducers that also connect directly to CP470 sonar module. Requires A80490 adaptor cable.

Sonar Depth
CHIRP Sonar = 900 feet (974 m)
DownVision™ = 600 feet (183 m)

External Sonar
Yes - CP100, CP200, CP370, CP470, CP570 via RayNet

Radar
Yes - Quantum, Digital, HD Color and Super HD Color Radars

AIS
Yes - N2K compatible

GNSS / GPS
Built-in GNSS Receiver: GPS/GLONASS/Galileo/Beidou - 10Hz 72 Channel - External Accessory: GA150 (A80288)

Autopilot Control
Yes - Evolution Autopilot

Thermal Night Vision
Yes - IP or Analogue

Video / Camera
1 x Analogue input (BNC) Up to 10 IP Cameras

Weather
GRIB View - Free GRIB viewer and Theyr Ltd Subscription - SiriusXM - N. America Only

Audio
N2K / *Bluetooth / *SiriusXM Audio [*Available in future Lighthouse 3 software update]

Digital Switching
Yes - Empirbus & C-Zone compatible [C-Zone integration available in future Lighthouse 3 software update]

Remote Control
RMK-10 (A80438) & RCU-3 (E62351)

Networking

Ethernet
2 x 10/100/1000 Mbits/ Network (RayNet)

NMEA0183
1 Transmit / 2 Receive

NMEA2000
1 x NMEA2000 port (DeviceNet microC)

SeaTalkNG
Requires DEVICENET FEMALE (F) ADAPTOR CABLE (A06079 100mm adaptor included in box)

USB
1 x USB microAB (rear - charging, external storage device or RCR-SD/USB Accessory (A80440)

Wi-Fi
WiFi - 802.11 a / b / g / n

BlueTooth
Bluetooth 4.0 + Low Energy + Power Class 1.5 [Available in future Lighthouse 3 software update]

Navigation

Cartography
Lighthouse, Navionics, *C-MAP Essentials & *C-MAP 4D MAX+ [*C-MAP chart compatibility available in future Lighthouse 3 software update]

Waypoint/Routes/Tracks (Wpts/Rts/Trk)
10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts

MEMORY

Internal
16GB Solid State

16GB Solid State
2 x microSD slots (front) - microSDHC max 32GB NTFS or FAT32 format / microSDXC max 2TB NTFS or FAT32 format (microSD native format of exFAT must be reformatted to NTFS or FAT32)

Input Voltage
12V and 24V DC (8 V to 32 DC)

Input Draw
~20W

Dimensions
11.9" x 6.85" x 2.56" (300 x 174 x 65 mm)

What's in the Box:

• Axiom Pro 9RVX


• RayNet (F) to Raynet (F) Cable — 2M (A62361)


• Trunnion Cover


• Trunnion Knobs


• Trunnion Bracket


• Suncover (A80534)


• Power / Video / NMEA0183 Cable - Straight, 1.5M (R62379)


• Micro-C DeviceNet (F) to STNG (F) Cable - 1M (A06075)


• Panel Seal Gasket


• Bezel Pieces and Home / Menu Button


• Mounting Fixings


• Quick Start Guide


• Warranty Card


• Raymarine window decal


• LNC3 Card


• RAY53 VHF
