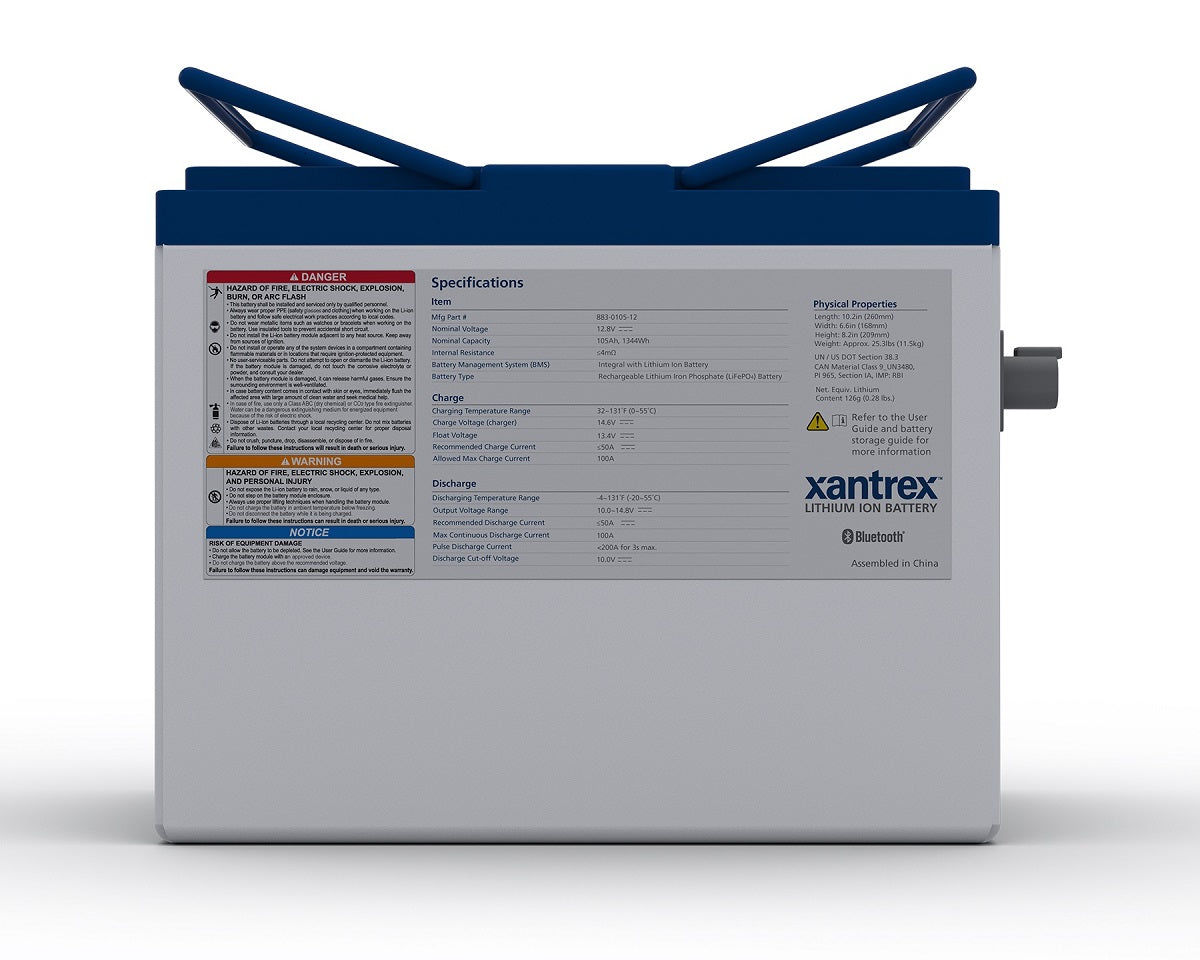

Xantrex 105AH 12v Group 27 Lithium Battery

Xantrex 105AH 12v Group 27 Lithium Battery

Xantrex Group 27 Lithium Ion Battery 105AH, 12V

Model: 883-0105-12

• Internal BMS - Reduces footprint


• Cell Balancing - extends lifetime of battery


• LED's to Monitor State of Charge


• Optional Remote Panel - view status of battery, turn battery on and off


• Bluetooth - connect to the Xantrex mobile app to view status of battery


• Parallel Stack up to 4 batteries

Xantrex manufactures a variety of lithium ion batteries for mobile applications including marine, RV, truck and specialty vehicles. We offer our lithium ion batteries in popular Group 31 and Group 27 sizes as well.

Many RV manufacturers, boat builders and specialty vehicle manufacturers exclusively use Xantrex batteries and other solutions for their power needs.

Specifications

Battery Voltage
12V

Nominal True Capacity
105Ah

Nominal Voltage
12.8 Volts

Nominal Watt Hours
1344Wh

Internal Impedence
5m Ohms

Charge Voltage
14.6V

Recommended Float Charge Voltage
13.6V

Recommended Charge Current
≤ 50A

Max Continuous Discharge Current
100A

Pulse Discharge Current
200A (3s)

Discharge Cut-off Voltage
10V

Cycle Life to 80% Health
2800 (0.5C, 25°C, 100% Depth of Discharge) - increased cycle life with ideal conditions

ENVIRONMENTAL

Charging Temperature Range
32 - 131°F (0 - 55°C)

Discharging Temperature Range
-4 - 131°F (-20 - 55°C)

Storage Period 1 Week
-4 - 113°F (-20 - 45°C)

Storage Period 1 Month
14 - 113°F (-10 - 45°C)

Storage Period 6 Months
50 - 77°F (10 - 25°C)

MECHANICAL

Dimensions
10.2" x 6.6" x 8.2" (260mm x 168mm x 209mm) G27

Weight
25.4lbs (11.5kg)

Battery Terminals
M8 x 1.25

Carrying Capability
Two Foldout Handles

Moutning Orientation
Horizontal or Vertical

What's in the Box:

• Xantex Battery


• Quickstart guide


• 2x Bolt M8 x 1.25cm


• 2x Lock Washer


• 2x captive washer
