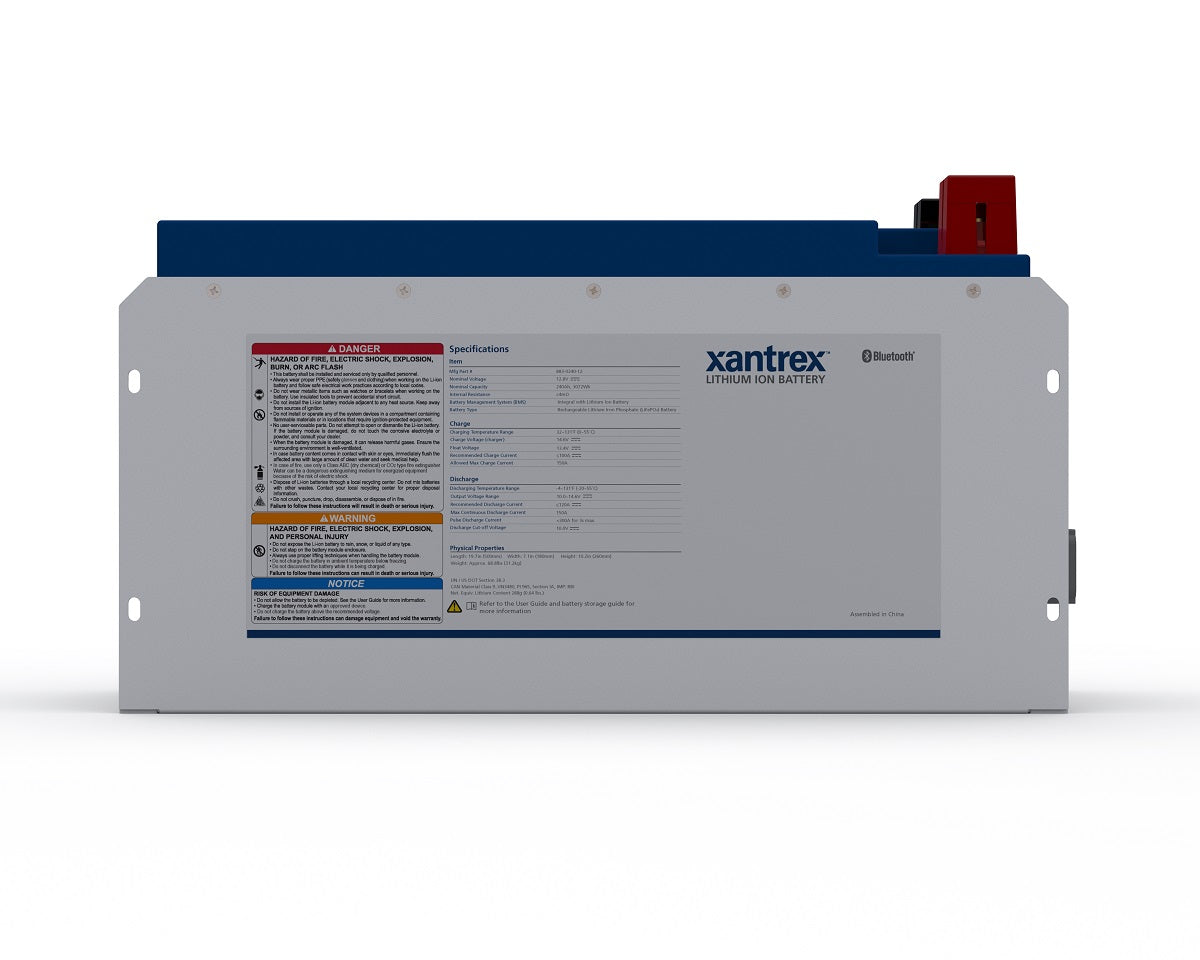

Xantrex 240AH 12v Lithium Battery

Xantrex 240AH 12v Lithium Battery

Xantrex Lithium Ion Battery 240AH, 12V

Model: 883-0240-12

• Internal BMS - Reduces footprint


• Cell Balancing - extends lifetime of battery


• LED's to Monitor State of Charge


• Optional Remote Panel - view status of battery, turn battery on and off


• Bluetooth - connect to the Xantrex mobile app to view status of battery


• Parallel Stack up to 4 batteries

Xantrex manufactures a variety of lithium ion batteries for mobile applications including marine, RV, truck and specialty vehicles.

Many RV manufacturers, boat builders and specialty vehicle manufacturers exclusively use Xantrex batteries and other solutions for their power needs.

The Xantrex Lithium Ion Iron Phosphate (LiFePO ) battery uses UL1973 certified cells. Equipped with redundant safety features, the Xantrex lithium battery is the safest in the market today. Specifically designed to withstand the harsh operating environments of mobile and marine applications, the Xantrex lithium battery lasts up to 6,000 cycles compared to a traditional lead acid or AGM battery, which typically lasts 400-500 cycles. The Xantrex lithium battery offers exceptional power density and is also available with a heating blanket option if installation is outside the main cabin. With the Bluetooth connection enabled gathering real time data from the battery is incredibly simple and always accurate.

Specifications

Battery Voltage
12V

Nominal True Capacity
240Ah

Nominal Voltage
12.8 Volts

Nominal Watt Hours
3072Wh

Internal Impedence
<4m Ohms

Charge Voltage
14.6V

Recommended Float Charge Voltage
13.6V

Recommended Charge Current
≤100A

Max Continuous Discharge Current
150A

Pulse Discharge Current
300A (3s)

Discharge Cut-off Voltage
10V

Cycle Life to 80% Health
2800 (0.5C, 25°C, 100% Depth of Discharge) - increased cycle life with ideal conditions

ENVIRONMENTAL

Charging Temperature Range
32 - 131°F (0 - 55°C)

Discharging Temperature Range
-4 - 131°F (-20 - 55°C)

Storage Period 1 Week
-4 - 113°F (-20 - 45°C)

Storage Period 1 Month
14 - 113°F (-10 - 45°C)

Storage Period 6 Months
50 - 77°F (10 - 25°C)

MECHANICAL

Dimensions
19.7in x 7.1in x 10.3in (500mm x 180mm x 260mm)

Weight
69.4lbs (31.5kg)

Battery Terminals
M8 x 1.25

Carrying Capability
Two metal handles

Moutning Orientation
Standing

What's in the Box:

• Xantex Battery


• Quickstart guide


• 2x Bolt M8 x 1.25cm


• 2x Lock Washer


• 2x captive washer
